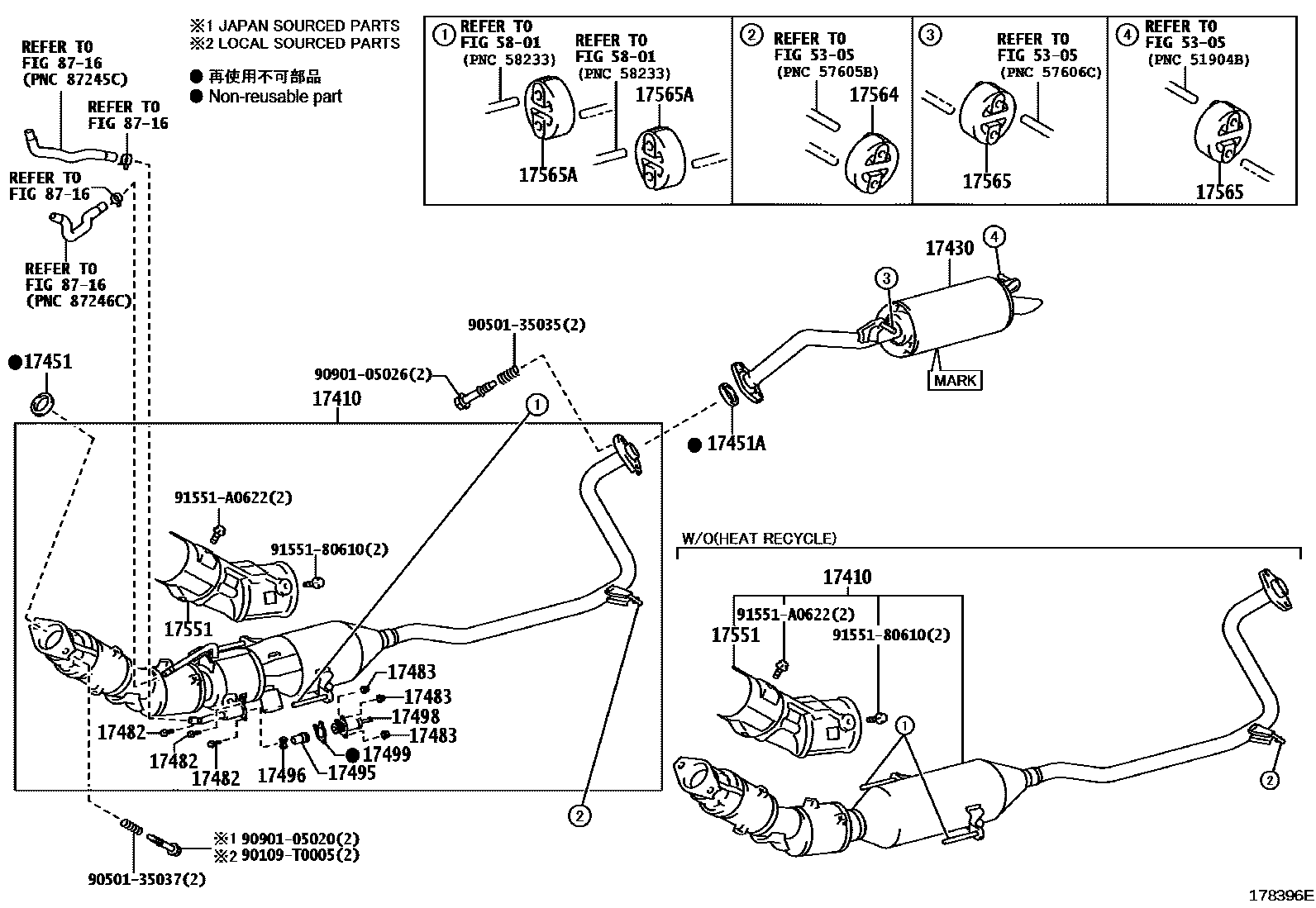

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=*405
*114=TOYOTA/GP1TB1/Y
*114=*406
17430PIPE ASSY, EXHAUST, TAIL
MARK 13715
17451GASKET, EXHAUST PIPE
sub17451-28041
17482BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR
17483NUT, EXHAUST PIPE GAS CONTROL ACTUATOR
17495ACTUATOR, EXHAUST PIPE GAS CONTROL
17496STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR
17498CASE, EXHAUST PIPE GAS CONTROL ACTUATOR
17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
sub17055-37010
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5305
5801
8716
90109T0005
main90109-T0005
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
9155180610
main91551-80610
91551A0622
main91551-A0622
24 parts on this diagram · 1 diagram in section
