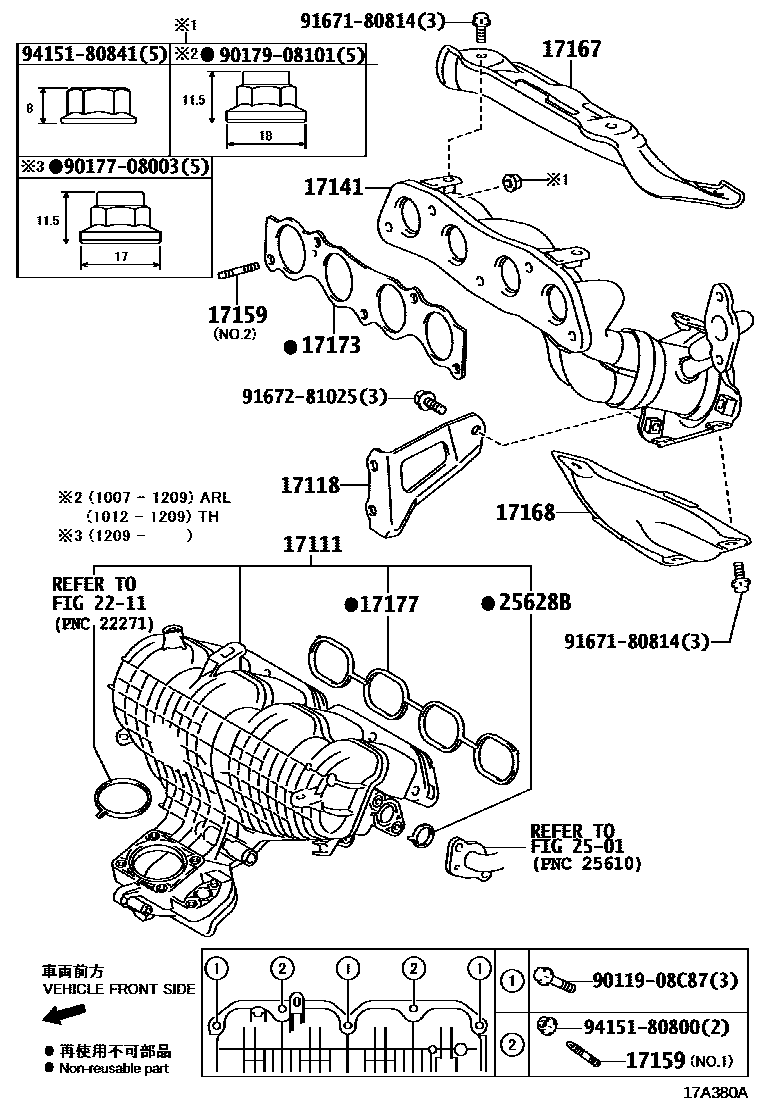

MANIFOLD

0001 1 0002 1ENGINE-2ZR-FXE(MADE IN UK)

17111MANIFOLD, INTAKE

main17120-37050i2ZRFXE..ZVW30..TH200904-201104

sub17120-37051

main17120-37051i2ZRFXE..ZVW30..ARL,EUR201104-201110

sub17120-37052

main17120-37052i2ZRFXE..ZVW30..ARL,EUR201110-201210

sub17120-37053

main17120-37053i2ZRFXE..ZVW30..ARL,EUR201210-201211

sub17120-37054

main17120-37054i2ZRFXE..ZVW30..ARL,EUR201211

17118STAY, MANIFOLD

main17118-37080i2ZRFXE..ZVW30..ARL,EUR200904-201204

17141MANIFOLD, EXHAUST

main17141-37110i2ZRFXE..ZVW30..TH200904-201103

sub17141-37150

main17141-37150i2ZRFXE..ZVW30..ARL,EUR201103-201204

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFXE..ZVW30..ARL,EUR200904-201204

NO.1

main90126-08052i2ZRFXE..ZVW30..ARL,EUR200904-201204

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37080i2ZRFXE..ZVW30..ARL,EUR200904-201204

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37110i2ZRFXE..ZVW30..ARL,EUR200904-201204

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFXE..ZVW30..ARL,EUR200904-201204

main17173-37010i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFXE..ZVW30..ARL,EUR200904-201204

2211

2501

25628BGASKET, EGR INLET

main25628-28010i2ZRFXE..ZVW30..ARL,EUR200904-201511

9011908C87

main90119-08C87

9017708003

main90177-08003

9017908101

main90179-08101

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

18 parts on this diagram · 2 diagrams in section
