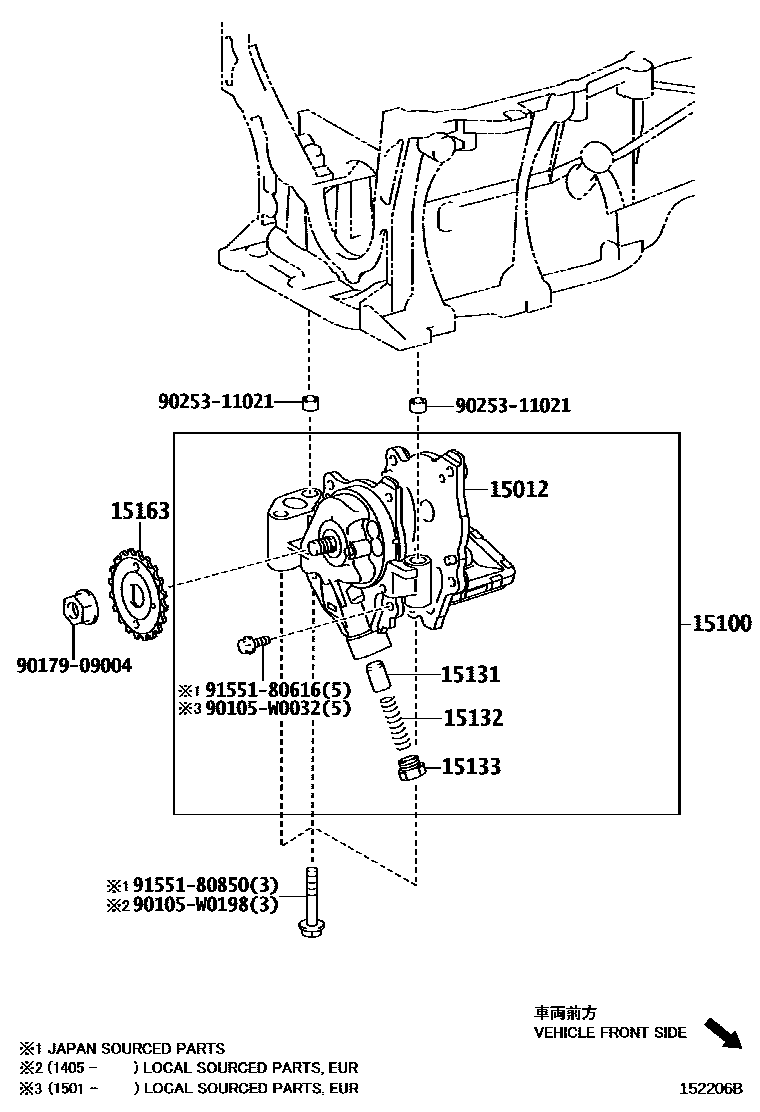

ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-37010i2ZRFXE..ZVW30..ARL,EUR200904-201204

main15012-37010i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

15100PUMP ASSY, OIL

main15100-37040i2ZRFXE..ZVW30..ARL,EUR200904-201204

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZRFXE..ZVW30..ARL,EUR200904-201204

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i2ZRFXE..ZVW30..ARL,EUR200904-201204

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2ZRFXE..ZVW30..ARL,EUR200904-201204

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFXE..ZVW30..ARL,EUR200904-201204

90105W0032

main90105-W0032

90105W0198

main90105-W0198

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

12 parts on this diagram · 1 diagram in section
