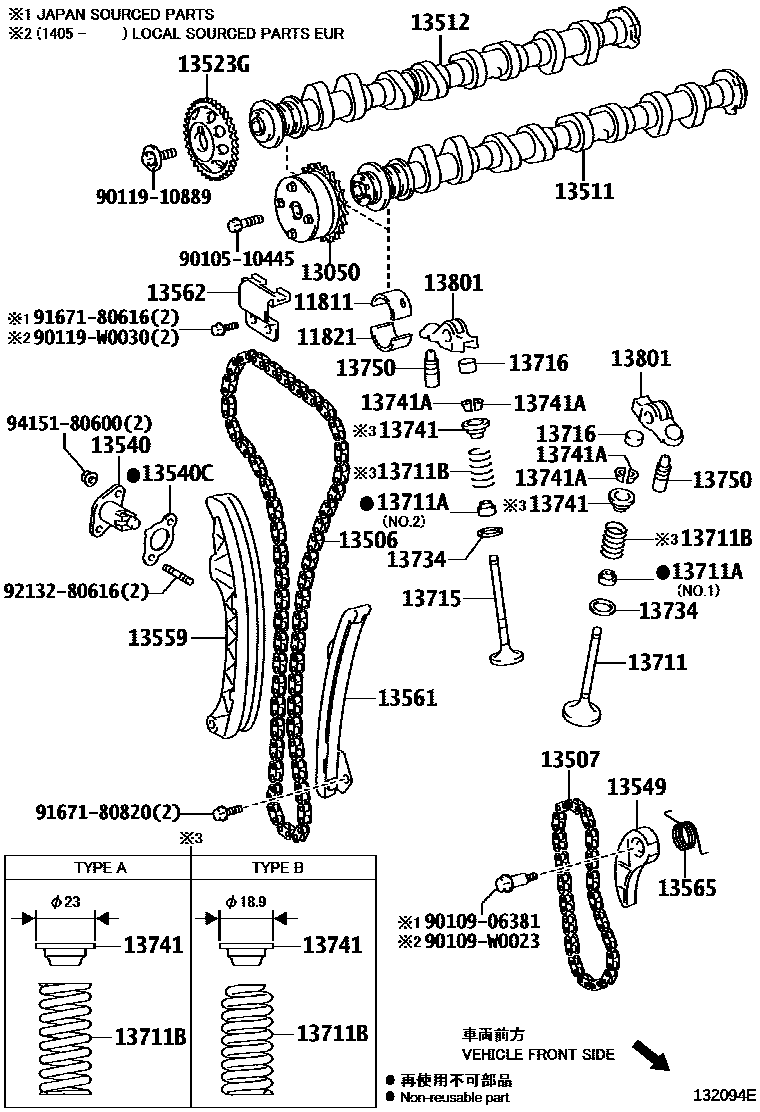

CAMSHAFT & VALVE

11811BEARING, CAMSHAFT, NO.1

main11811-37010i2ZRFXE..ZVW30..TH200904-201204

11821BEARING, CAMSHAFT, NO.2

main11821-37010i2ZRFXE..ZVW30..TH200904-201204

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0T010i2ZRFXE..ZVW30200904-200907

MADE IN USA

sub13050-0T011

main13050-0T011i2ZRFXE..ZVW30200907-200908

MADE IN USA

sub13050-0T050

main13050-0T022i2ZRFXE..ZVW30200904-200908

MADE IN CHINA

sub13050-0T060

sub13050-0T070

sub13050-37040

main13050-37012i2ZRFXE..ZVW30..ARL,EUR200904-201306

MADE IN JAPAN

sub13050-0T090

sub13050-37040

sub13050-37060

main13050-37040i2ZRFXE..ZVW30..EUR201302

ENGINE-2ZR-FXE(MADE IN UK)

13506CHAIN SUB-ASSY

main13506-37010i2ZRFXE..ZVW30..ARL,EUR200904-201311

sub13506-37070

main13506-37070i2ZRFXE..ZVW30..TH201311-201511

13507CHAIN SUB-ASSY, NO.2

main13507-28010i2ZRFXE..ZVW30..ARL,EUR200904-201204

13511CAMSHAFT

main13501-37030i2ZRFXE..ZVW30..ARL,EUR200904-201204

13512CAMSHAFT, NO.2

main13502-37040i2ZRFXE..ZVW30..TH200904-201504

sub13502-37080

sub13801-36020

main13502-37080i2ZRFXE..ZVW30..TH201504

13523GSPROCKET, CAMSHAFT TIMING

main13523-22020i2ZRFXE..ZVW30..ARL,EUR200904-201204

13540TENSIONER ASSY, CHAIN, NO.1

main13540-37030i2ZRFXE..ZVW30..ARL,EUR200904-201511

13540CGASKET(FOR CHAIN TENSIONER)

main13552-37010i2ZRFXE..ZVW30..TH200904-201511

13549PLATE, CHAIN TENSIONER

main13549-37010i2ZRFXE..ZVW30..ARL,EUR200904-201503

sub13549-37020

main13549-37020i2ZRFXE..ZVW30..ARL,EUR201504

13559SLIPPER, CHAIN TENSIONER

main13559-37010i2ZRFXE..ZVW30..EUR201204-201501

ENGINE-2ZR-FXE(MADE IN UK),(J)

sub13559-37050

main13559-37010i2ZRFXE..ZVW30..ARL,EUR200904-201501

sub13559-37050

main13559-37050i2ZRFXE..ZVW30..TH201502

main13559-37050i2ZRFXE..ZVW30..ARL,EUR201502-201511

ENGINE-2ZR-FXE(MADE IN UK),(J)

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-37020i2ZRFXE..ZVW30..TH200904-201503

sub13561-37050

main13561-37050i2ZRFXE..ZVW30..TH201504-201511

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-37010i2ZRFXE..ZVW30..TH200904-201503

sub13562-37020

main13562-37020i2ZRFXE..ZVW30..TH201504-201511

13565SPRING, CHAIN DAMPER

main13565-37010i2ZRFXE..ZVW30..TH201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

main13565-37010i2ZRFXE..ZVW30..ARL,EUR200904-201204

13711VALVE, INTAKE

main13711-37020i2ZRFXE..ZVW30..ARL,EUR200904-201204

main13711-37020i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02101i2ZRFXE..ZVW30..ARL,EUR200904-201204

NO.1

main90913-02101i2ZRFXE..ZVW30..TH201204

ENGINE-2ZR-FXE(MADE IN UK),(J),NO.1

main90913-02112i2ZRFXE..ZVW30..ARL,EUR200904-201204

NO.2

main90913-02112i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(J),NO.2

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31024i2ZRFXE..ZVW30..ARL,EUR200904-201110

sub90501-31027

main90501-31027i2ZRFXE..ZVW30..TH201110-201405

main90501-31028i2ZRFXE..ZVW30..TH201405-201408

TYPE A:REFER ILLUST.

main90501-32071i2ZRFXE..ZVW30..ARL,EUR201405-201408

TYPE B:REFER ILLUST.

sub90501-32072

main90501-32072i2ZRFXE..ZVW30..ARL,EUR201408

L=51.88

13715VALVE, EXHAUST

main13715-37030i2ZRFXE..ZVW30..ARL,EUR200904-201204

main13715-37030i2ZRFXE..ZVW30..TH201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

13716CAP, VALVE STEM

main13716-75020i2ZRFXE..ZVW30..ARL,EUR200904-201204

main13716-75020i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

13734SEAT, VALVE SPRING

main13734-62020i2ZRFXE..ZVW30..ARL,EUR200904-201204

13741RETAINER, VALVE SPRING

main13741-20021i2ZRFXE..ZVW30..TH200904-201405

main13741-20021i2ZRFXE..ZVW30..ARL,EUR201405-201408

TYPE A:REFER ILLUST.

main13741-36010i2ZRFXE..ZVW30..TH201408

main13741-36010i2ZRFXE..ZVW30..ARL,EUR201405-201408

TYPE B:REFER ILLUST.

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ZRFXE..ZVW30..ARL,EUR200904-201204

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i2ZRFXE..ZVW30..TH201408

main13750-75020i2ZRFXE..ZVW30..TH200904-201408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i2ZRFXE..ZVW30..ARL,EUR200904-201404

main13801-23011i2ZRFXE..ZVW30..EUR201204-201404

ENGINE-2ZR-FXE(MADE IN UK),(J)

main13801-36020i2ZRFXE..ZVW30..ARL,EUR201405

ENGINE-2ZR-FXE(MADE IN UK),(J)

9010510445

main90105-10445

9010906381

main90109-06381

90109W0023

main90109-W0023

9011910889

main90119-10889

90119W0030

main90119-W0030

9167180616

main91671-80616

9167180820

main91671-80820

9213280616

main92132-80616

9415180600

main94151-80600

34 parts on this diagram · 1 diagram in section
