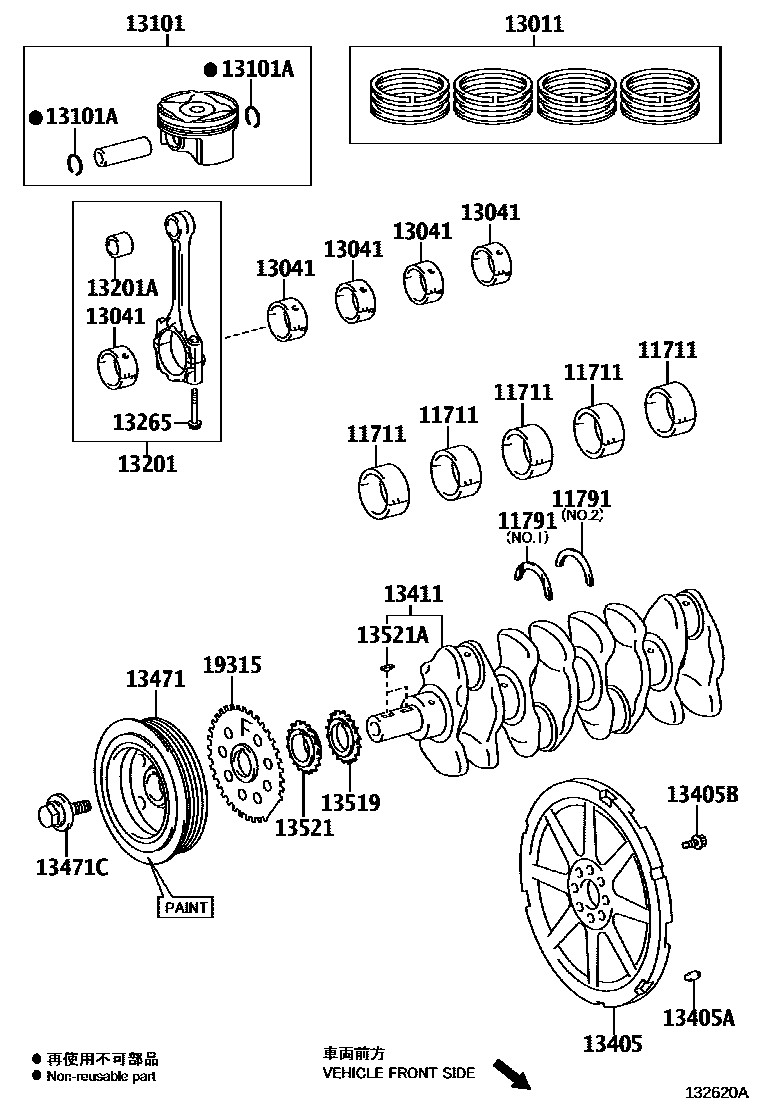

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
ENGINE-2ZR-FXE(MADE IN UK),MARK1,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK2,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK3,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK4,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK1,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK2,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK3,(L),REFER R/M
ENGINE-2ZR-FXE(MADE IN UK),MARK4,(L),REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD,NO.2
13011RING SET, PISTON
STD
STD
STD,BRAZIL SPEC&ENGINE-2ZR-FXE(E25)
STD,BRAZIL SPEC&ENGINE-2ZR-FXE(E25)
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
ENGINE-2ZR-FXE(MADE IN UK),MARK1,(L)
ENGINE-2ZR-FXE(MADE IN UK),MARK2,(L)
ENGINE-2ZR-FXE(MADE IN UK),MARK3,(L)
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,ENGINE-2ZR-FXE(MADE IN UK)
STD,BRAZIL SPEC&ENGINE-2ZR-FXE(E25)
STD,BRAZIL SPEC&ENGINE-2ZR-FXE(E25)
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MADE IN EUROPE
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
sub13265-22040
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(L)
(J)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
ENGINE-2ZR-FXE(MADE IN UK),(J)
ENGINE-2ZR-FXE(MADE IN UK),(L)
ENGINE-2ZR-FXE(MADE IN UK)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
19 parts on this diagram · 1 diagram in section
