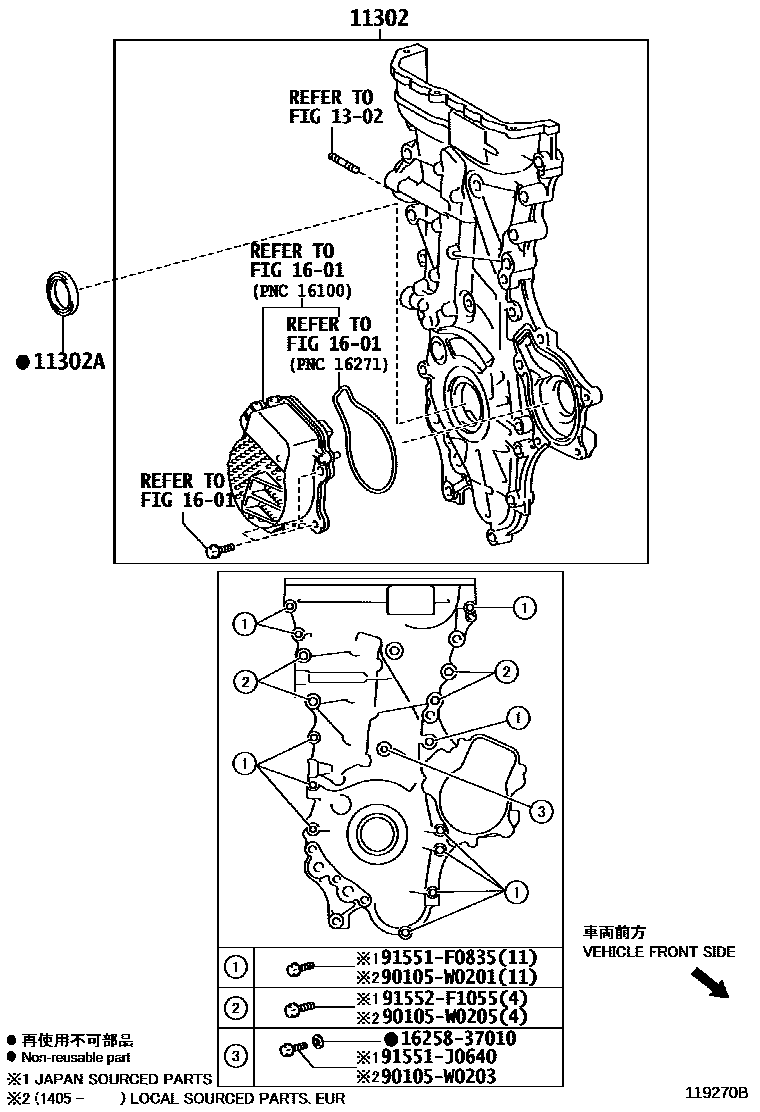

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37060i2ZRFXE..ZVW30..ARL,EUR200904-201204

sub11310-37062

main11310-37062i2ZRFXE..ZVW30..ARL,EUR201204

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i2ZRFXE..ZVW30..ARL,EUR200904-201109

main90311-38096i2ZRFXE..ZVW30..ARL,EUR201110-201204

1302

1601

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105W0201

main90105-W0201

90105W0203

main90105-W0203

90105W0205

main90105-W0205

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

11 parts on this diagram · 1 diagram in section
