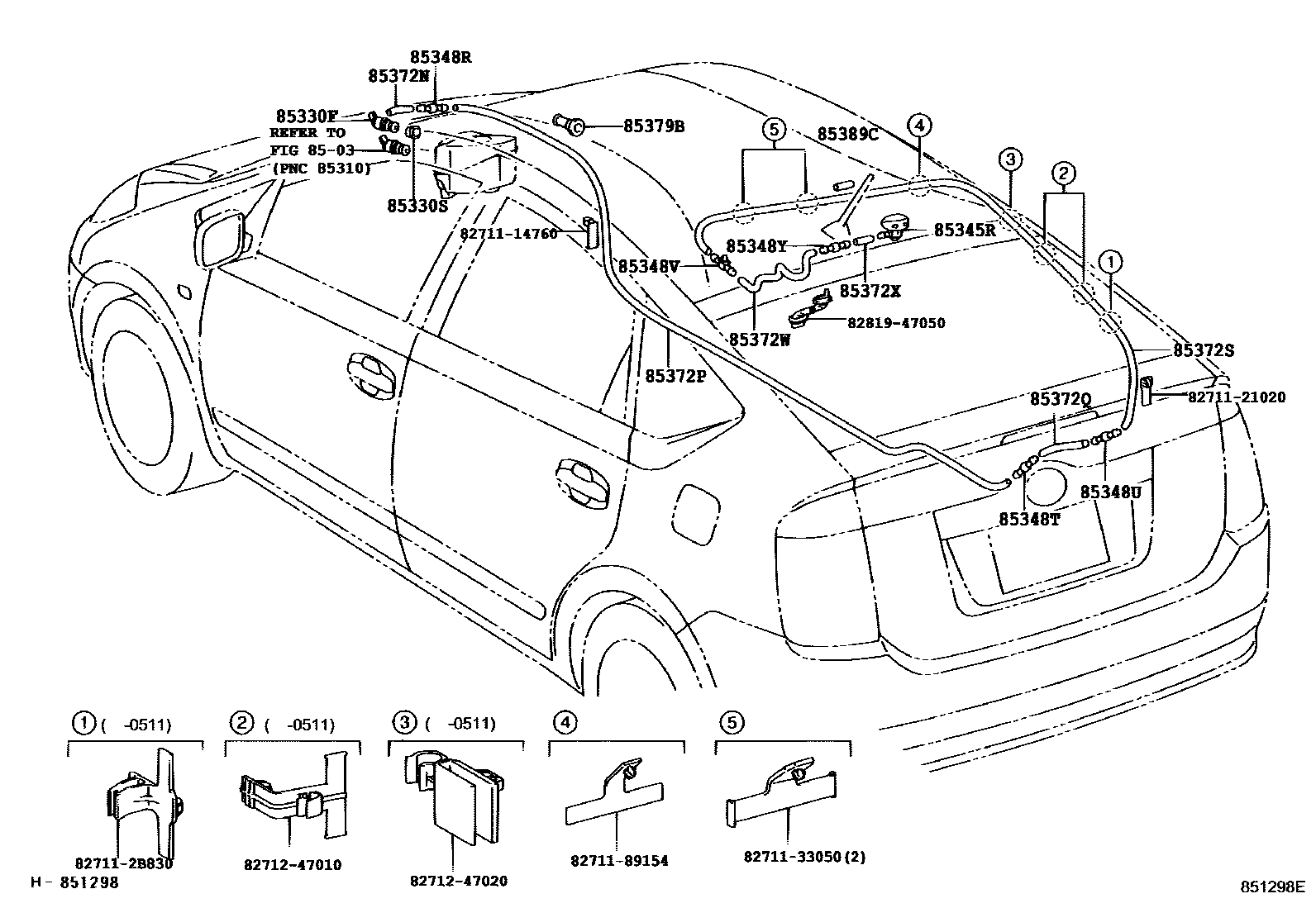

REAR WASHER
8503
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
WITH(INTERMITTENT REAR WIPER)
85345RNOZZLE, REAR WASHER
WITH(INTERMITTENT REAR WIPER)
85348RJOINT, REAR WASHER HOSE, NO.1
WITH(INTERMITTENT REAR WIPER)
85348TJOINT, REAR WASHER HOSE, NO.2
WITH(INTERMITTENT REAR WIPER)
85348UJOINT, REAR WASHER HOSE, NO.3
WITH(INTERMITTENT REAR WIPER)
85348VJOINT, REAR WASHER HOSE, NO.4
WITH(INTERMITTENT REAR WIPER)
85348YJOINT, REAR WASHER HOSE, NO.5
WITH(INTERMITTENT REAR WIPER)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=60)
L=1450(*H,L=60),WITH(INTERMITTENT REAR WIPER)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3300(*H,L=3000)
L=3300(*H,L=3000),WITH(INTERMITTENT REAR WIPER)
L=3300(*H,L=3000),SRS AIR BAG-DRIVER & PASSENGER
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=40),WITH(INTERMITTENT REAR WIPER)
L=1000(*H,L=40)
L=1000(*H,L=40),SRS AIR BAG-DRIVER & PASSENGER
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300(*H,L=1860)
L=3300(*H,L=1860),WITH(INTERMITTENT REAR WIPER)
L=3300(*H,L=1860),SRS AIR BAG-DRIVER & PASSENGER
L=3300(*H,L=1810)
L=3300(*H,L=1810),WITH(INTERMITTENT REAR WIPER)
L=3300(*H,L=1810),SRS AIR BAG-DRIVER & PASSENGER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1000(*H,L=290)
L=1000(*H,L=290),WITH(INTERMITTENT REAR WIPER)
L=1000(*H,L=290),SRS AIR BAG-DRIVER & PASSENGER
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1800(*H,L=60)
L=1800(*H,L=60),WITH(INTERMITTENT REAR WIPER)
L=1800(*H,L=60),SRS AIR BAG-DRIVER & PASSENGER
85379BGROMMET, WASHER, A
WITH(INTERMITTENT REAR WIPER)
85389CPROTECTOR, WASHER
8271114760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14760
8271121020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-21020
827112B830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B830
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33050
8271189154WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89154
8271247010CLAMP, WIRING HARNESS
main82712-47010
8271247020CLAMP, WIRING HARNESS
main82712-47020
8281947050GROMMET, WIRING HARNESS
main82819-47050
25 parts on this diagram · 1 diagram in section
