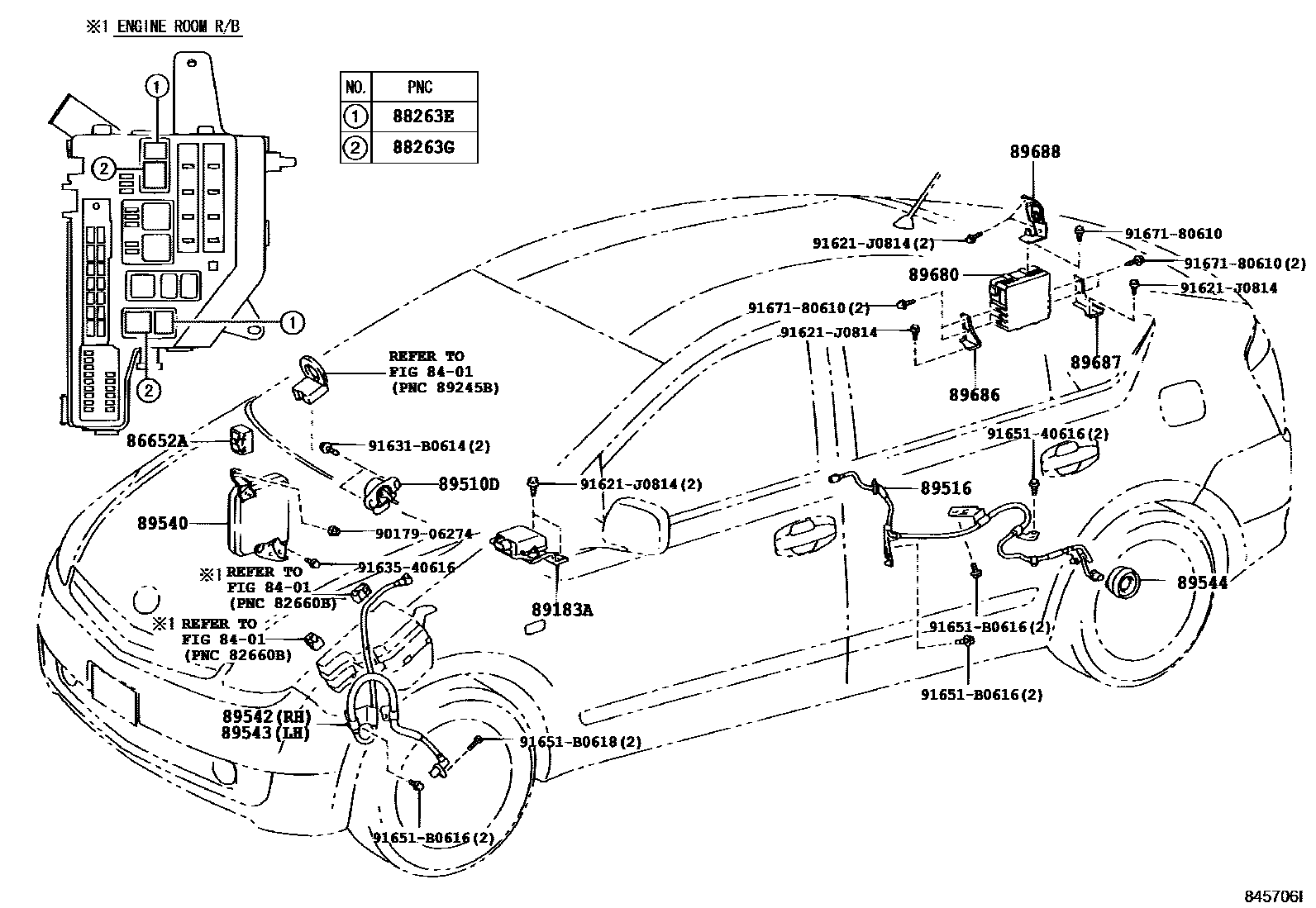

ABS & VSC

0001 1 0002 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-20010iNHW20¥4,190200308-200903

88263ERELAY, SKID CONTROL NO.2

main88263-32070iNHW20¥2,810200308-200903

88263GRELAY, SKID CONTROL

main88263-21010iNHW20¥2,740200308-200903

89183ASENSOR, YAWRATE

main89180-47010iNHW20..EUR¥120,000200308-200511

W(VSC)

main89180-47010iNHW20..EUR¥120,000200511-200903

WITH(VSC)

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47010iNHW20..LHD¥9,800200308-200903

main89510-47020iNHW20..RHD¥9,800200308-200903

89516WIRE, SKID CONTROL SENSOR

main89516-47050iNHW20¥2,840200308-200903

RH

main89516-47060iNHW20¥2,840200308-200903

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-47050iNHW20..RHD¥262,000200308-200408

main89540-47060iNHW20..LHD¥262,000200308-200408

main89540-47090iNHW20..RHD¥262,000200408-200806

sub89540-47120¥262,000

main89540-47100iNHW20..LHD200408-200806

sub89540-47130

main89540-47120iNHW20..RHD¥262,000200807-200903

main89540-47130iNHW20..LHD200807-200903

89542SENSOR, SPEED, FRONT RH

main89542-47020iNHW20¥21,700200308-200903

89543SENSOR, SPEED, FRONT LH

main89543-47020iNHW20¥21,700200308-200903

89544SENSOR, SKID CONTROL

main89544-20010iNHW20¥13,300200308-200903

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iNHW20¥62,100200607-200903

main89680-47010iNHW20¥74,600200308-200501

sub89680-47020¥74,600

sub89687-58010¥1,470

main89680-47020iNHW20¥74,600200502-200606

sub89680-33010¥62,100

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-47010iNHW20¥900200308-200903

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-47010iNHW20¥1,080200308-200903

89688BRACKET, BRAKE CONTROL POWER SUPPLY, NO.3

main89688-47010iNHW20¥1,470200308-200903

9017906274

main90179-06274¥70

91621J0814

main91621-J0814¥60

91631B0614

main91631-B0614¥110

9163540616

main91635-40616¥110

9165140616

main91651-40616¥60

91651B0616

main91651-B0616¥80

91651B0618

main91651-B0618¥100

9167180610

main91671-80610¥60

23 parts on this diagram · 2 diagrams in section
