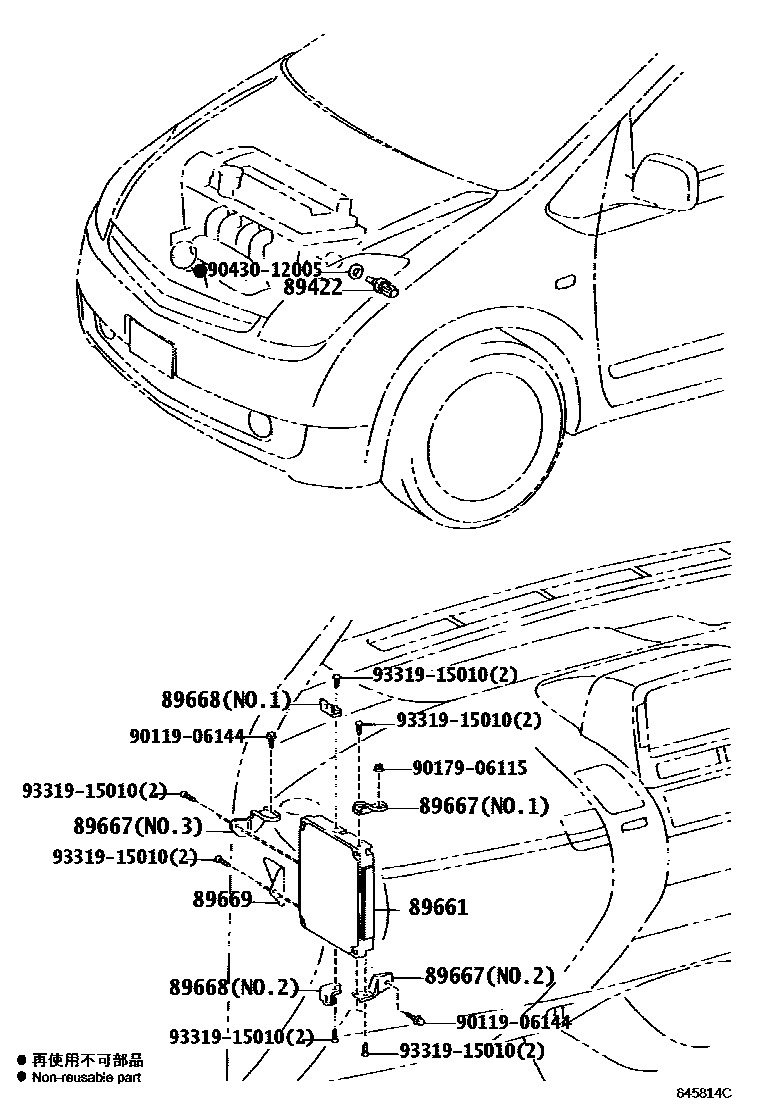

ELECTRONIC FUEL INJECTION SYSTEM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89667BRACKET, ENGINE CONTROL COMPUTER
NO.1
NO.2
NO.3
NO.1
NO.2
NO.3
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
NO.1
NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9011906144
main90119-06144
9017906115
main90179-06115
9043012005
main90430-12005
9331915010
main93319-15010
9 parts on this diagram · 2 diagrams in section
