WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL & CONSOLE BO0006 1INSTRUMENT PANEL & CONSOLE BO0007 1DOOR 0008 1FLOOR & ROOF 0009 1FLOOR & ROOF 0010 1HIGH-TENSION CABLE 0011 1CLAMP & BRACKET 0012 1CABLE BOND 0013 1CONNECTOR

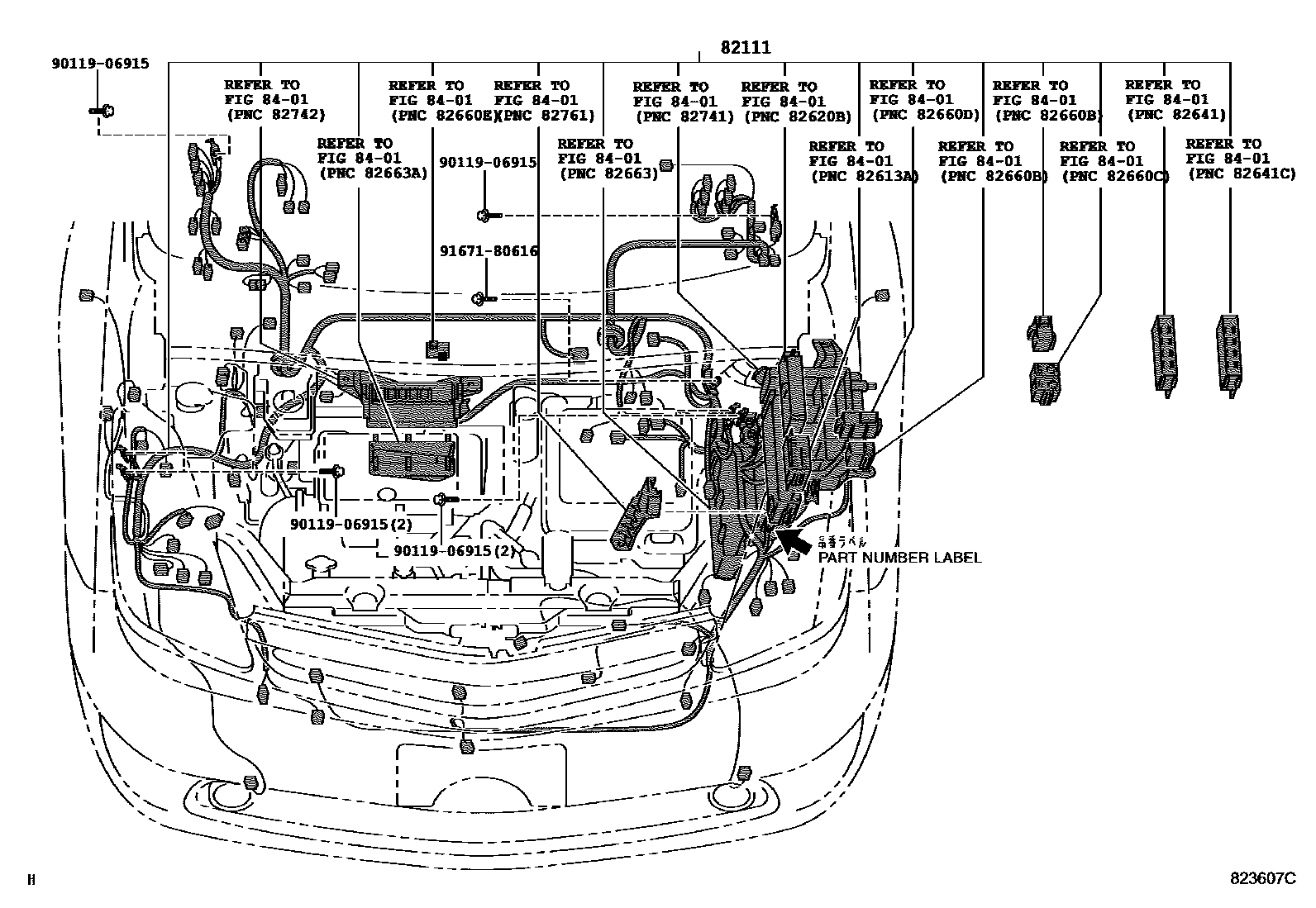

82111WIRE, ENGINE ROOM MAIN

main82111-47150supersedes 82111-47160iNHW20..ARL200308-200405

HONG KONG SPEC

main82111-47151supersedes 82111-47161iNHW20..ARL200405-200511

HONG KONG SPEC

main82111-47260iNHW20..ARL200511-200808

HONG KONG SPEC

main82111-47261supersedes 82111-47271iNHW20..ARL200808-200903

HONG KONG SPEC

8401

9011906915

main90119-06915

9167180616

main91671-80616

4 parts on this diagram · 13 diagrams in section
