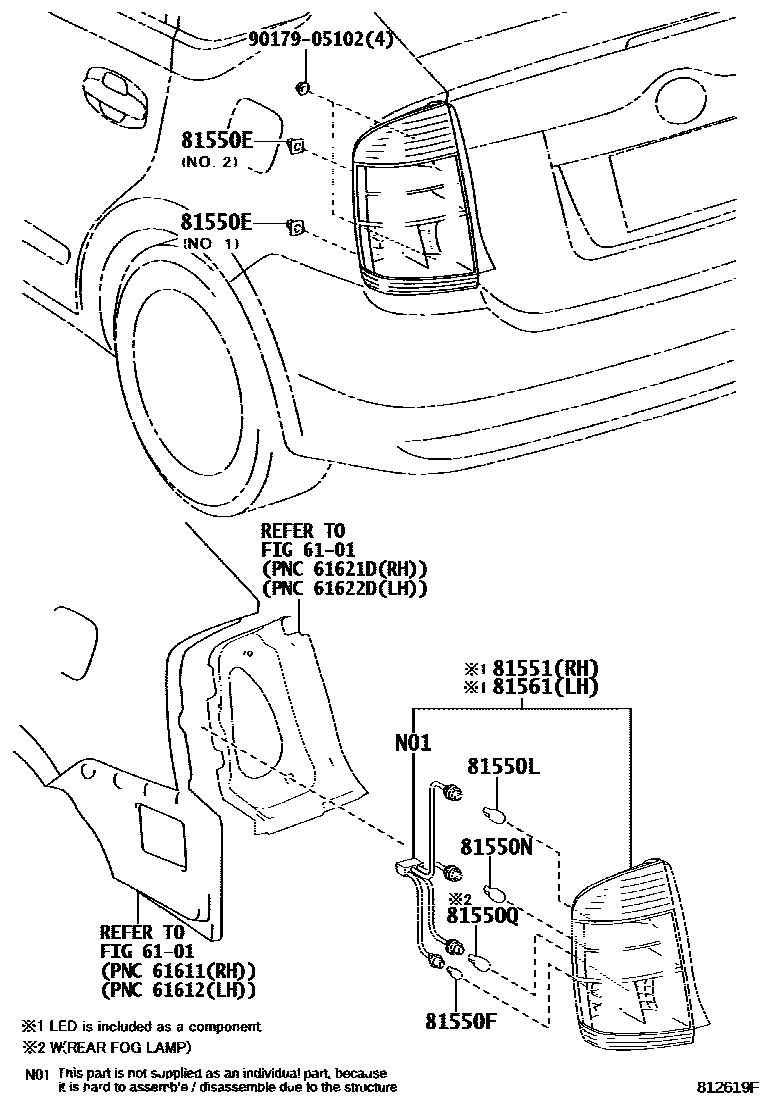

REAR COMBINATION LAMP

6101

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09075×2iNHW20200308-200511

NO.1

main90467-09112×2iNHW20200308-200511

NO.2

81550FBULB, TAILLAMP

main99132-12050×2iNHW20200308-200511

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iNHW20200511-200903

81550NBULB, BACK UP LAMP

main90981-13043×2iNHW20200308-200511

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043×2iNHW20..EUR200308-200511

81551LENS, REAR COMBINATION LAMP, RH

main81551-47050iNHW20..ARL200308-200405

main81551-47051iNHW20..ARL200405-200511

main81551-47060iNHW20..EUR200308-200405

main81551-47061iNHW20..EUR200405-200511

main81551-47080iNHW20..ARL200511-200903

main81551-47090iNHW20..EUR200511-200611

main81551-47091iNHW20..EUR200611-200903

81561LENS, REAR COMBINATION LAMP, LH

main81561-47050iNHW20..ARL200308-200405

main81561-47051iNHW20..ARL200405-200511

main81561-47060iNHW20..EUR200308-200405

main81561-47061iNHW20..EUR200405-200511

main81561-47080iNHW20..ARL200511-200903

main81561-47090iNHW20..EUR200511-200611

main81561-47091iNHW20..EUR200611-200903

9017905102

main90179-05102

9 parts on this diagram · 1 diagram in section
