SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

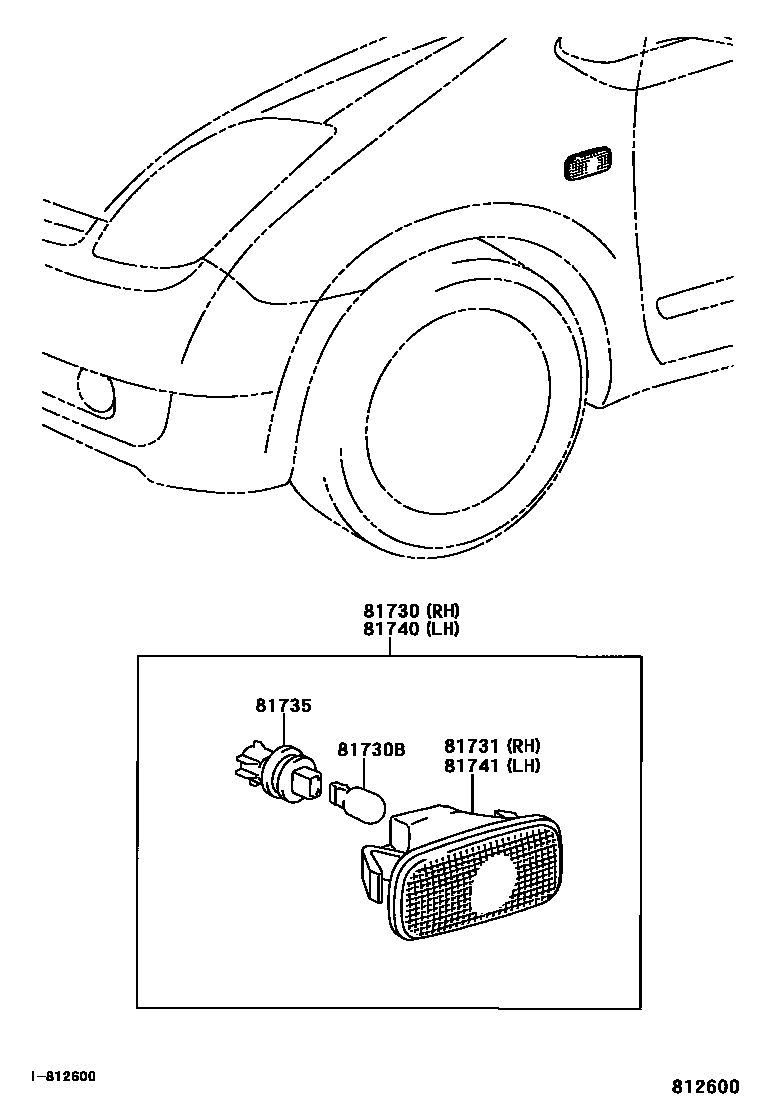

Parts diagram
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-53010i200308-200609
sub81730-53011
main81730-53011i200610-200903
81730BBULB (FOR SIDE TURN SIGNAL LAMP)
main99132-12050i200308-200903
12V 5W
81731LENS, SIDE TURN SIGNAL LAMP, RH
main81731-53010i200308-200610
sub81731-53011
main81731-53011i200610-200903
81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
main90075-60001i200308-200903
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81730-53010i200308-200609
sub81730-53011
main81730-53011i200610-200903
81741LENS, SIDE TURN SIGNAL LAMP, LH
main81731-53010i200308-200610
sub81731-53011
main81731-53011i200610-200903

6 parts on this diagram · 1 diagram in section
