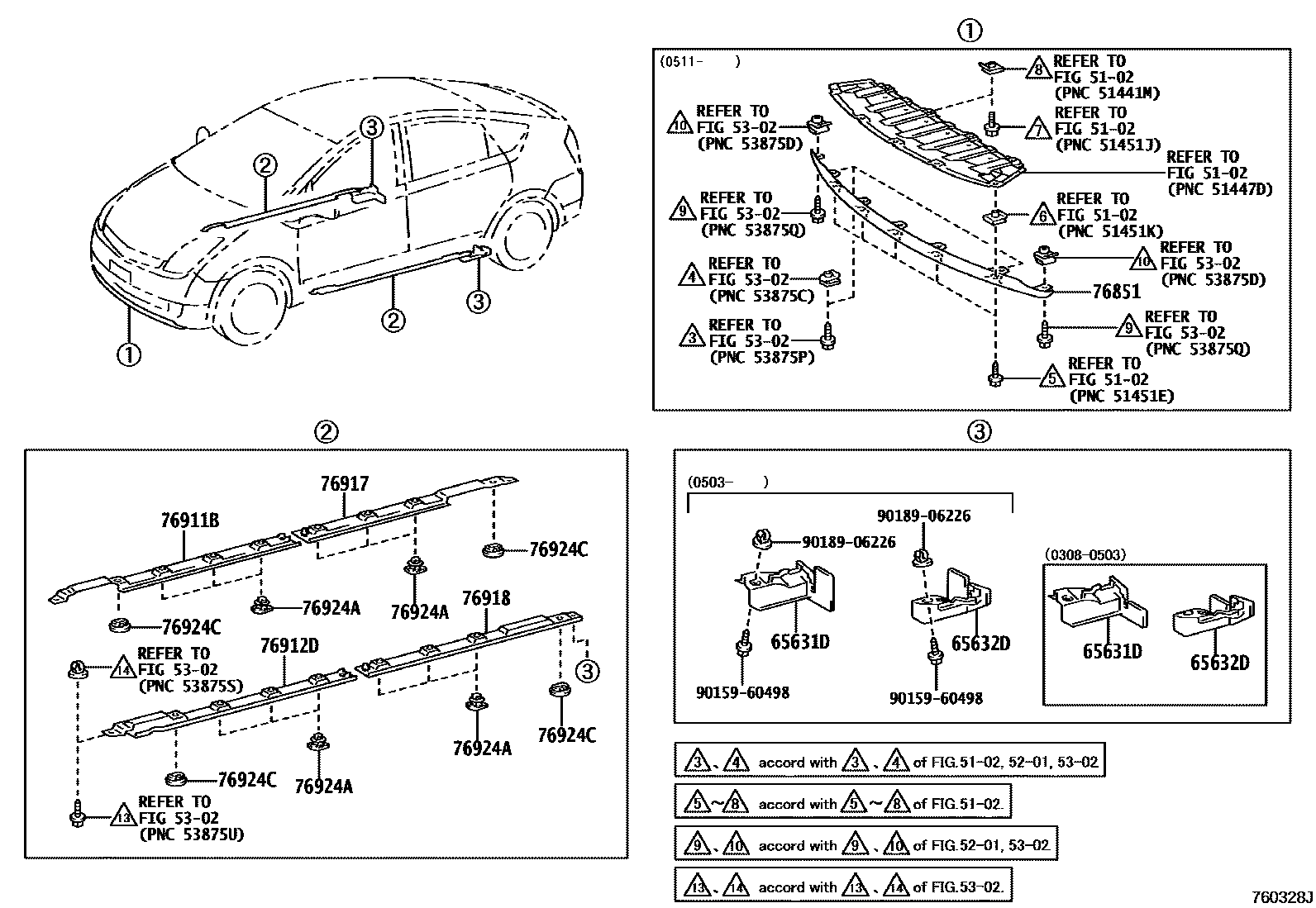

MUDGUARD & SPOILER

0001 1 0002 1

5102

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47020iNHW20200308-200503

sub65631-47030

main65631-47030iNHW20200503-200903

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47020iNHW20200308-200503

sub65632-47030

main65632-47030iNHW20200503-200903

76851COVER, FRONT SPOILER

main76851-47010iNHW20200511-200903

76911BMUDGUARD, SIDE, RH

main76911-47010iNHW20200308-200903

76912DMUDGUARD, SIDE, LH

main76912-47010iNHW20200308-200903

76917MUDGUARD, SIDE, REAR RH

main76917-47010iNHW20200308-200903

76918MUDGUARD, SIDE, REAR LH

main76918-47010iNHW20200308-200903

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-47010iNHW20200308-200903

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-52021iNHW20200308-200903

9015960498

main90159-60498

9018906226

main90189-06226

13 parts on this diagram · 2 diagrams in section
