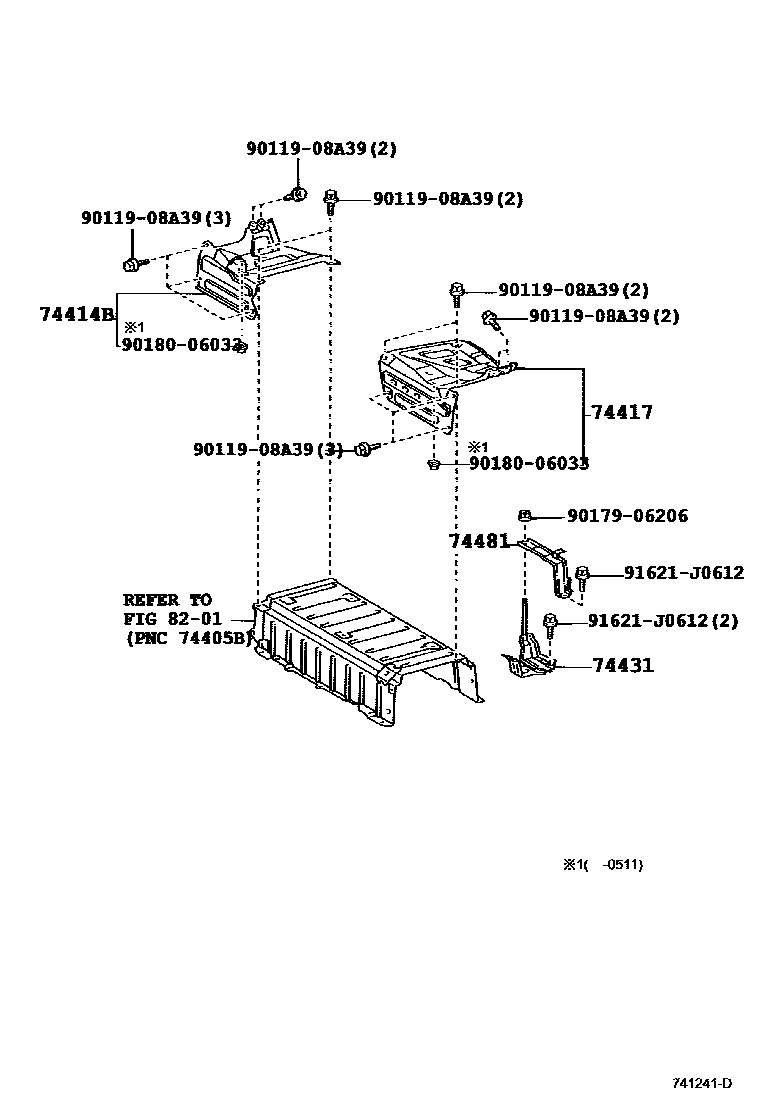

BATTERY CARRIER

74414BREINFORCEMENT, BATTERY BRACKET

main74409-47020iNHW20200308-200903

74417BRACKET, BATTERY CARRIER

main74417-47020iNHW20200308-200903

74431TRAY, BATTERY

main74440-47010iNHW20..LHD200308-200903

main74440-47020iNHW20..RHD200308-200903

W(SMART ENTRY)

74481CLAMP, BATTERY HOLD DOWN

main74480-47010iNHW20200308-200903

8201

9011908A39

main90119-08A39

9017906206

main90179-06206

9018006033

main90180-06033

91621J0612

main91621-J0612

9 parts on this diagram · 1 diagram in section
