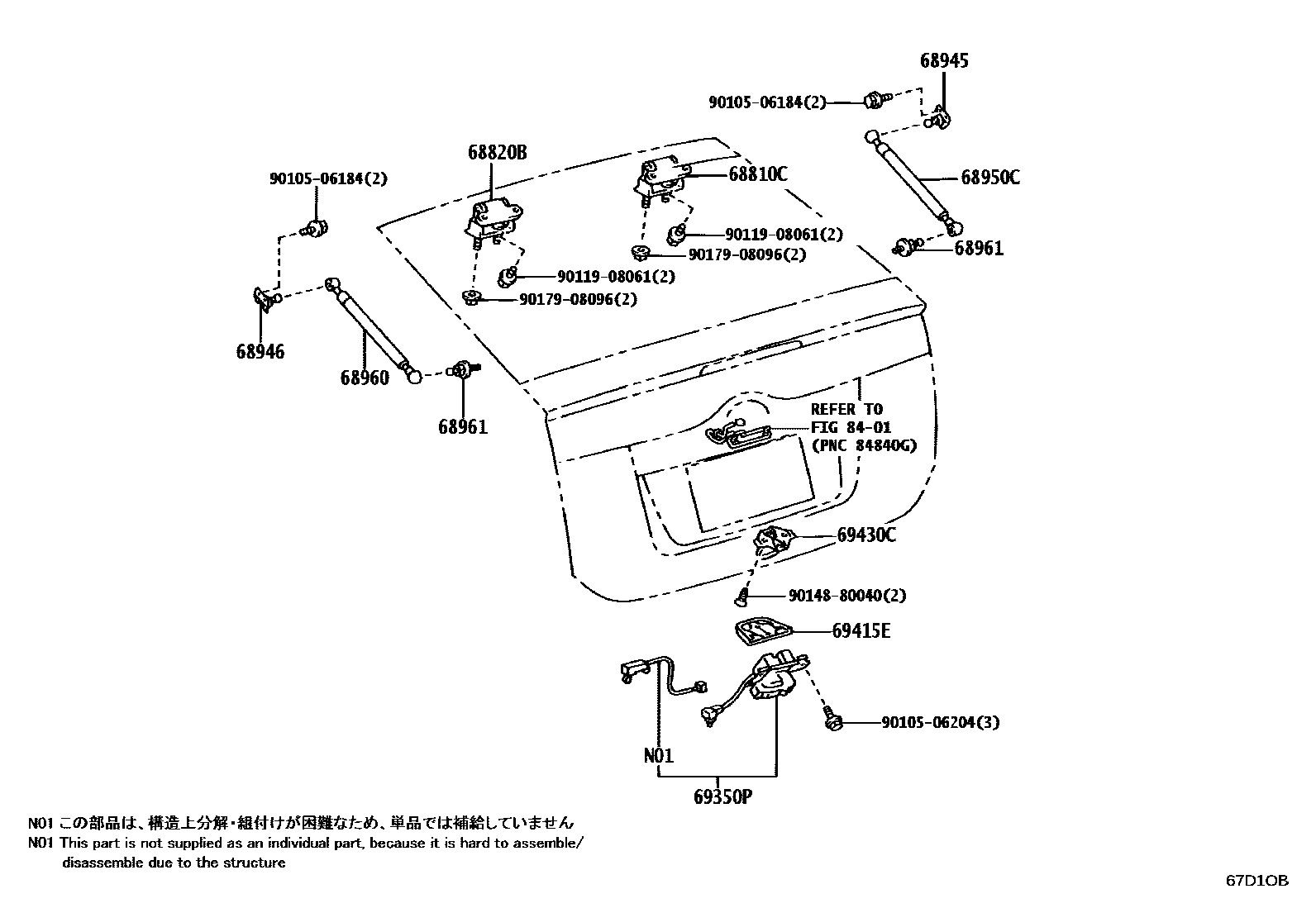

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iNHW20200308-200511

sub68810-47011

68820BHINGE ASSY, BACK DOOR, LH

main68810-47010iNHW20200308-200511

sub68810-47011

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12030iNHW20200308-200511

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-12030iNHW20200308-200511

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W202iNHW20..ARL200408-200504

SINGAPORE SPEC

sub68950-0W203

main68950-0W250iNHW20..EUR200308-200401

main68950-0W251iNHW20..EUR200401-200502

main68950-0W252iNHW20..EUR200503-200511

sub68950-0W253

main68950-0W430iNHW20..EUR200511-200705

main68950-0W431iNHW20..EUR200706-200903

main68950-0W200supersedes 68950-0W210iNHW20..ARL200308-200401

WITH(INTERMITTENT REAR WIPER)

main68950-0W201supersedes 68950-0W211iNHW20..ARL200401-200408

WITH(INTERMITTENT REAR WIPER)

68960STAY ASSY, BACK DOOR, LH

main68960-0W192iNHW20..ARL200408-200504

SINGAPORE SPEC

sub68960-0W193

main68960-0W240iNHW20..EUR200308-200401

main68960-0W241iNHW20..EUR200401-200502

main68960-0W242iNHW20..EUR200503-200511

sub68960-0W243

main68960-0W430iNHW20..EUR200511-200705

main68960-0W431iNHW20..EUR200706-200903

main68960-0W190supersedes 68960-0W200iNHW20..ARL200308-200401

WITH(INTERMITTENT REAR WIPER)

main68960-0W191supersedes 68960-0W201iNHW20..ARL200401-200408

WITH(INTERMITTENT REAR WIPER)

68961BOLT, BACK DOOR STAY

main68961-20140×2iNHW20200511-200903

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47010iNHW20200511-200903

sub69350-47011

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47010iNHW20200308-200511

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010iNHW20200308-200511

8401

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880040

main90148-80040

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
