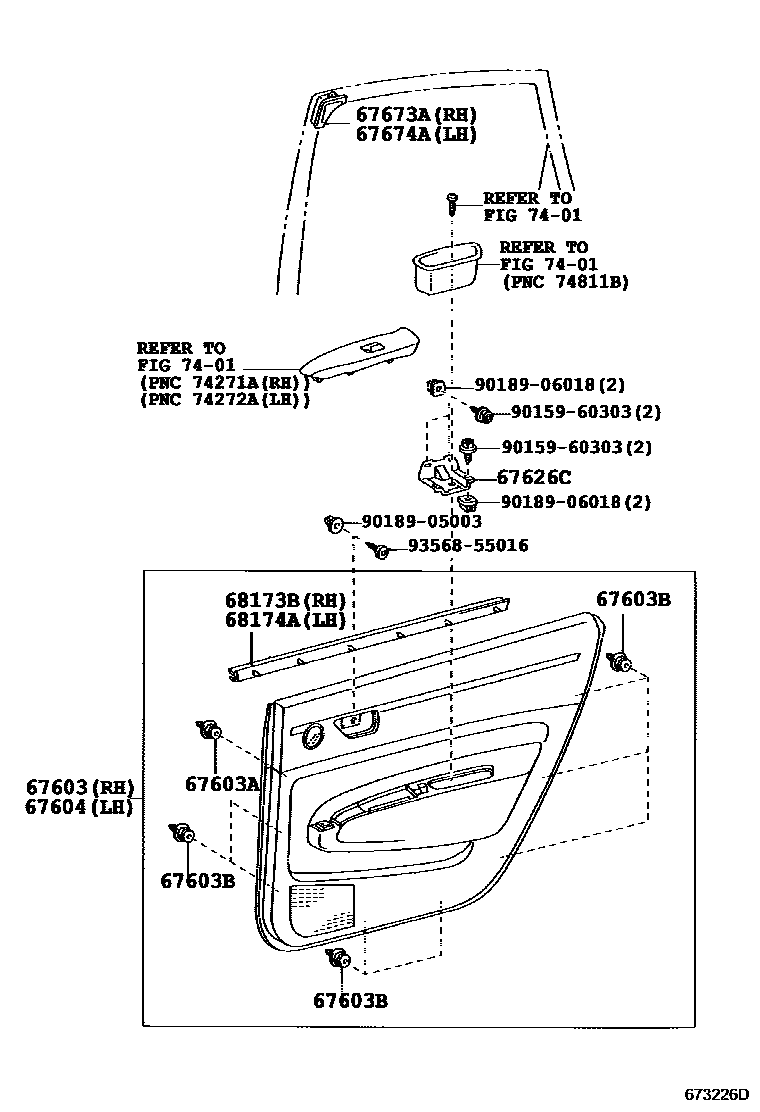

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-47070-D0iNHW20..ARL200308-200511

DK.RED,TRIM1#

sub67630-47071¥33,500

main67630-47070-E0iNHW20..ARL200308-200511

DK.BROWN,TRIM0#

sub67630-47071¥33,500

main67630-47070-E1iNHW20..EUR200308-200511

DK.BROWN,TRIM1#

sub67630-47071¥33,500

main67630-47160-C0iNHW20200511-200903

BLACK,TRIM1#

main67630-47160-C1iNHW20..EUR200711-200903

BLACK,TRIM41

main67630-47160-E2iNHW20..EUR200511-200903

ORCHID BROWN,TRIM4#

main67630-47160-E2iNHW20..EUR200711-200903

ORCHID BROWN,TRIM41

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080iNHW20¥160200401-200903

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-10161iNHW20¥90200308-200903

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-47070-D0iNHW20..ARL200308-200511

DK.RED,TRIM1#

sub67640-47071¥33,500

main67640-47070-E0iNHW20..ARL200308-200511

DK.BROWN,TRIM0#

sub67640-47071¥33,500

main67640-47070-E1iNHW20..EUR200308-200511

DK.BROWN,TRIM1#

sub67640-47071¥33,500

main67640-47160-C0iNHW20200511-200903

BLACK,TRIM1#

main67640-47160-C1iNHW20..EUR200711-200903

BLACK,TRIM41

main67640-47160-E2iNHW20..EUR200511-200903

ORCHID BROWN,TRIM4#

main67640-47160-E2iNHW20..EUR200711-200903

ORCHID BROWN,TRIM41

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-47010iNHW20¥840200308-200903

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iNHW20¥180200308-200903

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iNHW20¥180200308-200903

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-47020iNHW20¥3,090200308-200511

main68173-47030iNHW20¥3,090200511-200903

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-47020iNHW20¥3,090200308-200511

main68174-47030iNHW20¥3,090200511-200903

7401

9015960303

main90159-60303¥70

9018905003

main90189-05003¥130

9018906018

main90189-06018¥80

9356855016

main93568-55016¥70

14 parts on this diagram · 2 diagrams in section
