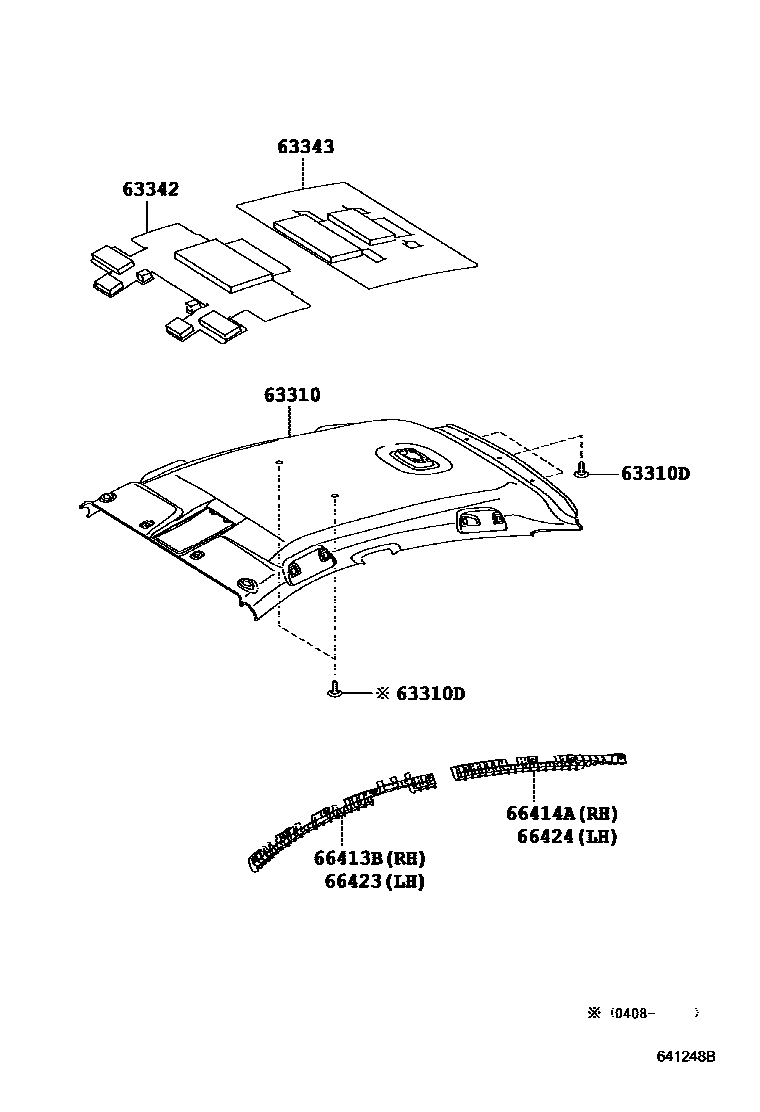

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-47050-A1iNHW20..ARL200308-200407

IVORY,TRIM0#

sub63310-47060¥49,100

main63310-47050-B1iNHW20200308-200407

GRAY,TRIM1#

sub63310-47060¥49,100

main63310-47051-A1iNHW20..ARL200408-200511

IVORY,TRIM0#

sub63310-47070¥49,000

main63310-47051-B1iNHW20200408-200903

GRAY,TRIM1#

sub63310-47070¥49,000

main63310-47051-E0iNHW20200511-200903

GREGE,TRIM4#

sub63310-47070¥49,000

63310DCLIP, ROOF HEADLINING

main90467-05164-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

sub90467-05164¥110

main90467-05164-B6iNHW20200408-200903

GRAY,TRIM1#

sub90467-05164¥110

main90467-05164-B6iNHW20..EUR200308-200408

GRAY,TRIM19

sub90467-05164¥110

main90467-05164-B6iNHW20..ARL200308-200408

GRAY,TRIM18

sub90467-05164¥110

main90467-05164-E2iNHW20200511-200903

GREGE,TRIM4#

sub90467-05164¥110

63342PAD, ROOF SILENCER, NO.2

main63342-47040iNHW20¥1,580200308-200407

main63342-47041iNHW20¥1,600200408-200903

63343PAD, ROOF SILENCER, NO.3

main63343-47030iNHW20¥1,600200308-200903

66413BSPACER, SIDE RAIL, FRONT RH

main66413-47030iNHW20..ARL¥3,160200308-200511

SRS AIR BAG-DRIVER & PASSENGER

sub66413-47902¥3,160

main66413-47030iNHW20..ARL¥3,160200511-200903

WITH(VSC)

sub66413-47902¥3,160

66414ASPACER, SIDE RAIL, REAR RH

main66414-47020iNHW20..ARL¥3,160200308-200511

SRS AIR BAG-DRIVER & PASSENGER

main66414-47020iNHW20..ARL¥3,160200511-200903

WITH(VSC)

66423SPACER, SIDE RAIL, FRONT LH

main66423-47030iNHW20..ARL¥3,160200308-200511

SRS AIR BAG-DRIVER & PASSENGER

sub66423-47900¥3,160

main66423-47030iNHW20..ARL¥3,160200511-200903

WITH(VSC)

sub66423-47900¥3,160

66424SPACER, SIDE RAIL, REAR LH

main66424-47020iNHW20..ARL¥3,160200308-200511

SRS AIR BAG-DRIVER & PASSENGER

main66424-47020iNHW20..ARL¥3,160200511-200903

WITH(VSC)

8 parts on this diagram · 1 diagram in section
