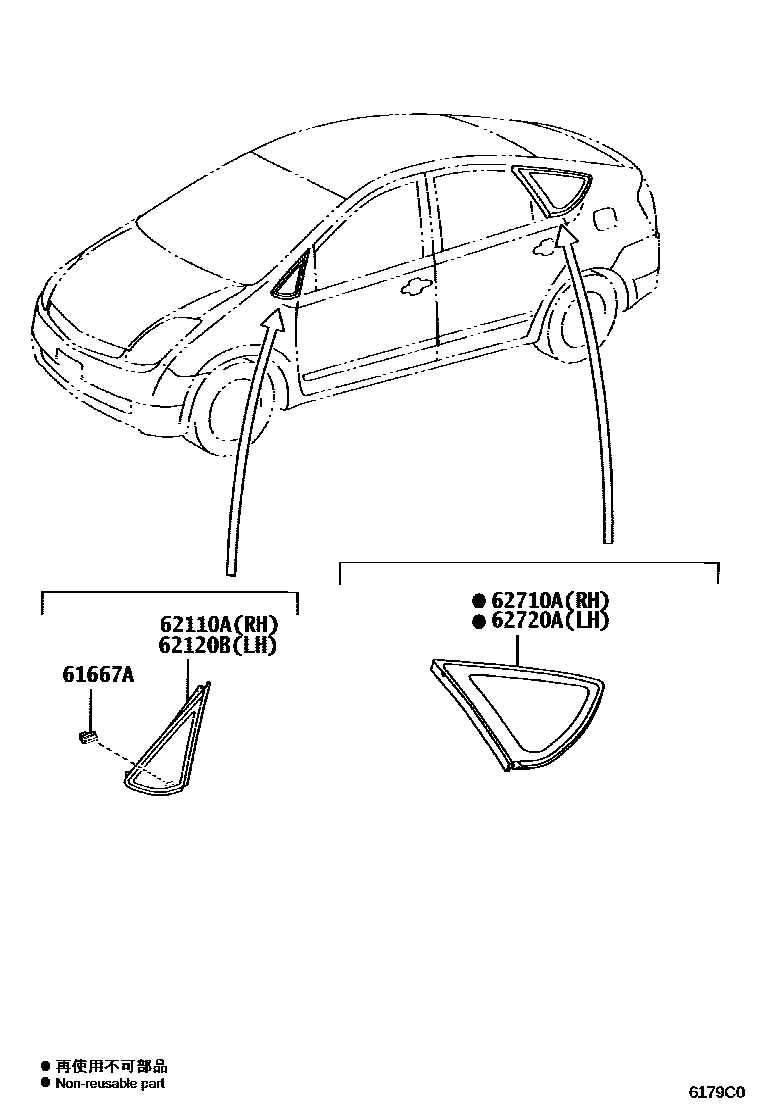

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030×2iNHW20200308-200511

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-47010iNHW20200308-200503

main62110-47011iNHW20200503-200511

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-47010iNHW20200308-200503

main62120-47011iNHW20200503-200511

62710AWINDOW ASSY, QUARTER, RH

main62710-47010iNHW20200308-200503

*UVCTT,T=3.1,GREEN

main62710-47011iNHW20200503-200511

*UVCTT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-47010iNHW20200308-200503

*UVCTT,T=3.1,GREEN

main62720-47011iNHW20200503-200511

*UVCTT,T=3.1,GREEN

5 parts on this diagram · 1 diagram in section
