SIDE MEMBER
5202
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
53822BBRACKET, FRONT FENDER, REAR LH
53878ESPACER, FRONT FENDER
55723JREINFORCEMENT, COWL TOP SIDE, RH
55724EREINFORCEMENT, COWL TOP SIDE, LH
5701
58355FBRACKET, REAR BUMPER ARM, RH
58356EBRACKET, REAR BUMPER ARM, LH
58745PROTECTOR, QUARTER PANEL, FRONT RH
58746PROTECTOR, QUARTER PANEL, FRONT LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61104BREINFORCEMENT SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211BRAIL, ROOF SIDE, OUTER REAR RH
61212BRAIL, ROOF SIDE, OUTER REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61824PLATE, NOISE CONTROL, NO.1
62554BPAD, PILLAR, NO.4
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
7503947020CLIP SUB-ASSY, OUTSIDE MOULDING
main75039-47020
9017906308
main90179-06308
9046706169
main90467-06169
91511B0812
main91511-B0812
91641K0816
main91641-K0816
91651B0820
main91651-B0820

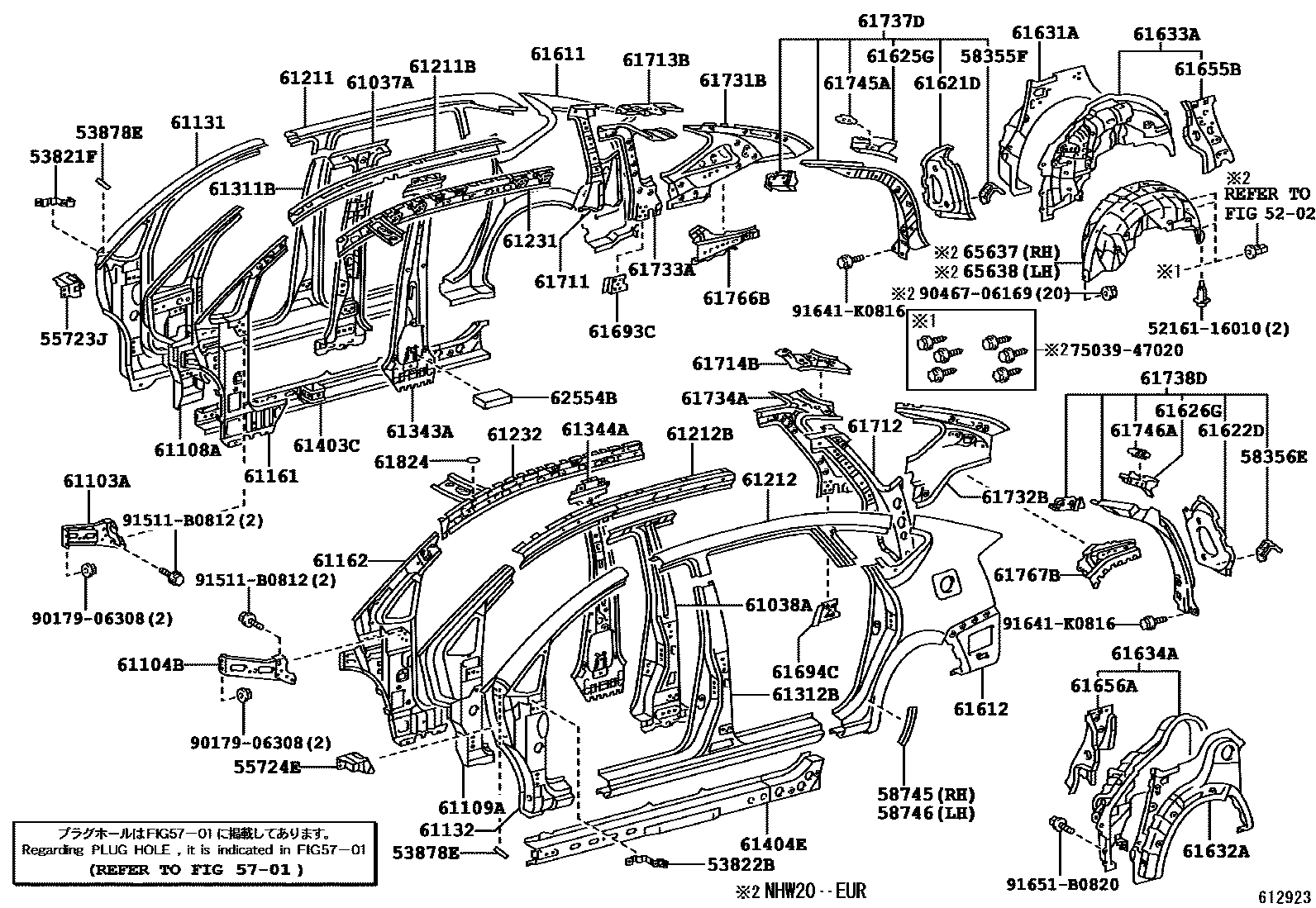

72 parts on this diagram · 1 diagram in section
