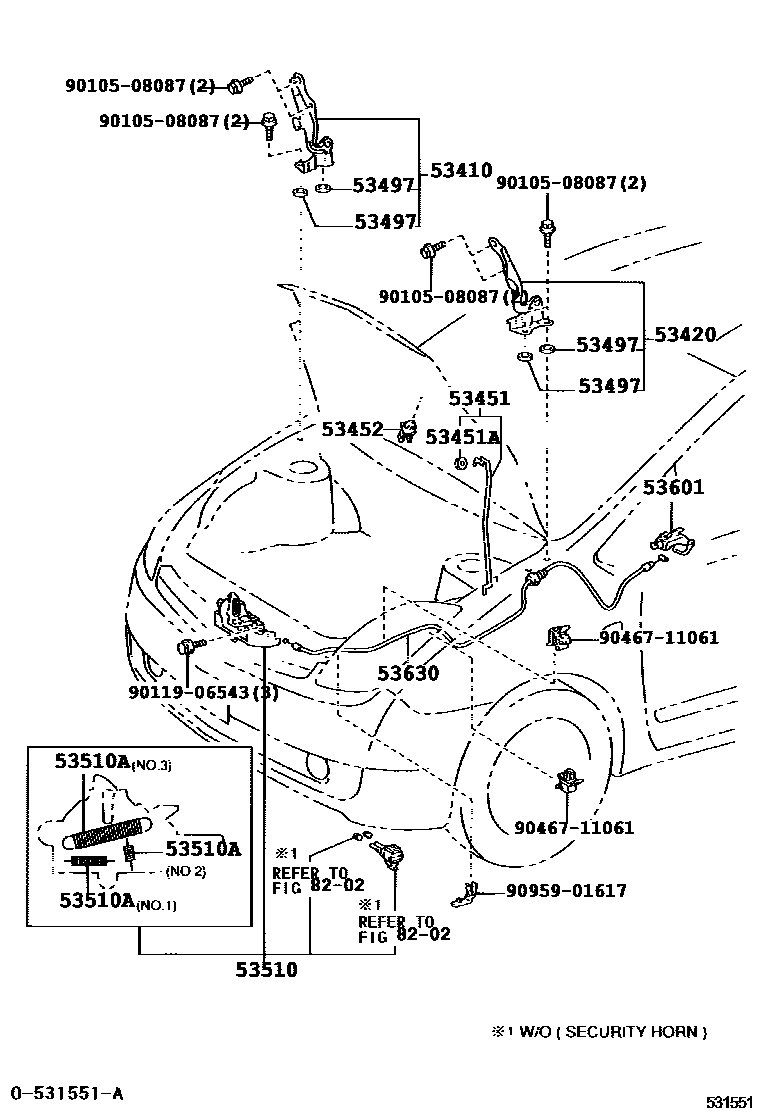

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-47040iNHW20200308-200903

53420HINGE ASSY, HOOD, LH

main53420-47040iNHW20200308-200903

53451ROD, HOOD SUPPORT

main53440-47020iNHW20200308-200903

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15028iNHW20200308-200903

53452HOLDER, HOOD STAY

main53452-26010iNHW20200308-200903

53497PAD, HOOD HINGE, NO.1

main53497-42010iNHW20200308-200903

T=0.5

53510LOCK ASSY, HOOD

main53510-47050iNHW20..RHD..EUR200308-200903

SINGAPORE SPEC

main53510-47050iNHW20..ARL200308-200903

HONG KONG SPEC

main53510-47060iNHW20..LHD200308-200903

main53510-47080iNHW20..RHD..EUR200308-200903

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNHW20200308-200903

WD=0.9,CW=21,NO.1

main90506-12063iNHW20200308-200903

WD=1.2,CW=8.5,NO.2

main90506-16077iNHW20200308-200903

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

sub53601-52010

main53601-52010-B6iNHW20200308-200903

MD.GRAY,TRIM1#

sub53601-52010

main53601-52010-E4iNHW20200511-200903

GREGE,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47030iNHW20200308-200903

8202

9010508087

main90105-08087

9011906543

main90119-06543

9046711061

main90467-11061

9095901617

main90959-01617

15 parts on this diagram · 2 diagrams in section
