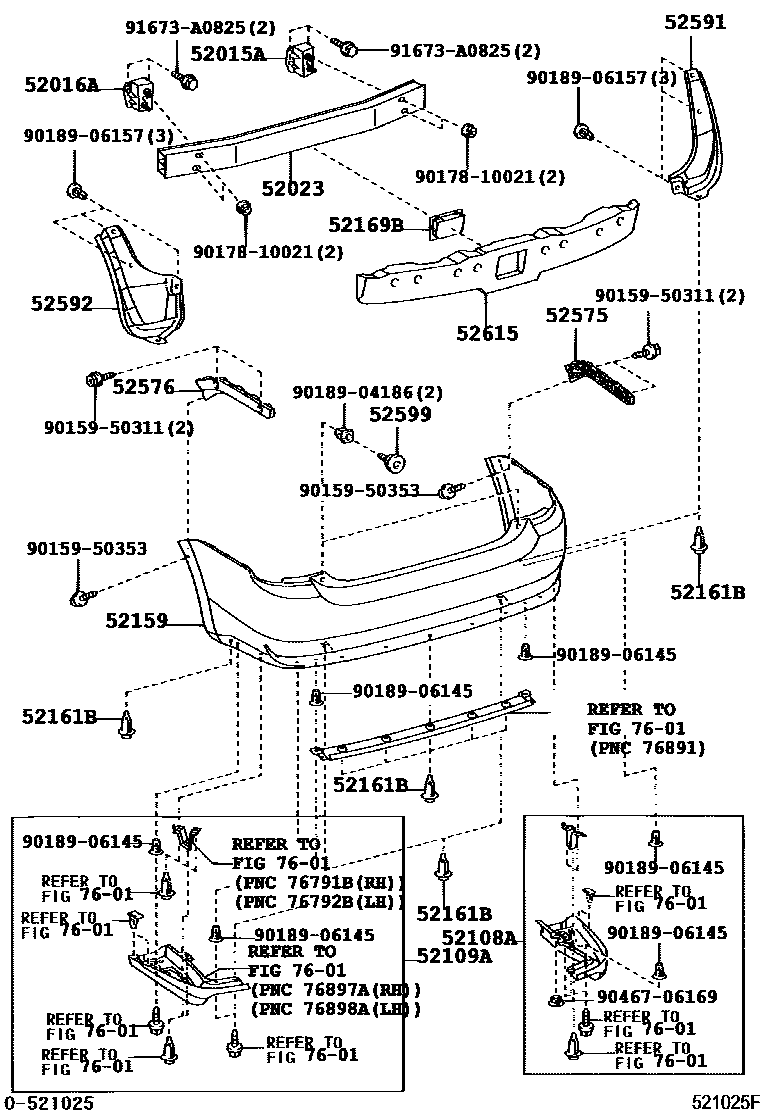

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47020iNHW20¥3,520200308-200501

sub52015-47021¥3,500

main52015-47021iNHW20¥3,500200501-200903

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47010iNHW20¥3,520200308-200501

sub52016-47011¥3,500

main52016-47011iNHW20¥3,500200501-200903

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-47050iNHW20¥45,100200308-200903

52108ABUMPER SUB-ASSY, REAR SIDE, RH

main52108-47010iNHW20¥19,800200308-200903

52109ABUMPER SUB-ASSY, REAR SIDE, LH

main52109-47010iNHW20¥19,800200308-200903

52159COVER, REAR BUMPER

main52159-47903iNHW20¥44,600200308-200903

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iNHW20¥120200308-200903

sub52161-0K040¥120

52169BBRACKET, REAR BUMPER, CENTER

main52169-47010iNHW20¥3,480200308-200903

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47010iNHW20¥3,470200308-200508

sub52575-47011¥3,470

main52575-47011iNHW20¥3,470200509-200903

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47010iNHW20¥3,470200308-200508

sub52576-47011¥3,470

main52576-47011iNHW20¥3,470200509-200903

52591SEAL, REAR BUMPER SIDE, RH

main52591-47010iNHW20¥1,790200308-200903

52592SEAL, REAR BUMPER SIDE, LH

main52592-47010iNHW20¥2,210200308-200903

52599STOPPER, REAR BUMPER, UPPER

main52599-68020iNHW20¥230200308-200903

52615ABSORBER, REAR BUMPER ENERGY

main52615-47020iNHW20¥9,600200308-200903

7601

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

9017810021

main90178-10021¥100

9018904186

main90189-04186¥90

9018906145

main90189-06145¥80

9018906157

main90189-06157¥80

9046706169

main90467-06169¥80

91673A0825

main91673-A0825¥100

23 parts on this diagram · 1 diagram in section
