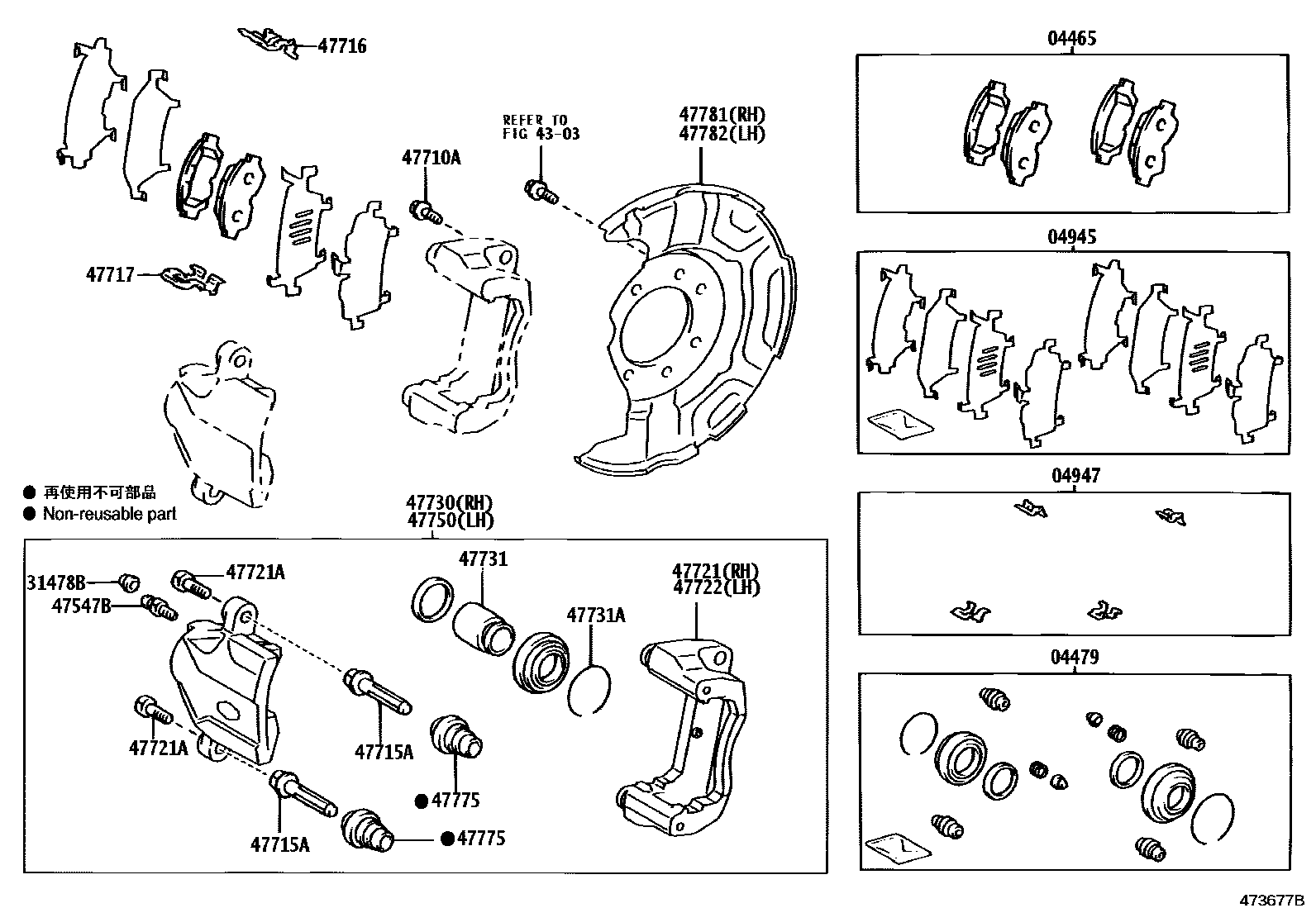

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W050i200308-200411

TEXTAR T4146

sub04465-0W080

main04465-0W080i200411-200903

TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-49010i200311-200903

sub04478-47070

main04479-47020i200308-200311

sub04478-47050

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210i200308-200903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47010i200308-200903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020i200308-200903

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i200308-200903

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12347i200308-200903

*12-1.25PX40.5-20.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-47010i200308-200903

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070i200308-200903

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030i200308-200903

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12220i200308-200903

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164i200308-200903

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12040i200308-200903

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47020i200308-200609

sub47730-47050

main47730-47050i200610-200903

47731PISTON, FRONT DISC BRAKE

main47731-47010i200308-200903

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001i200308-200903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47020i200308-200609

sub47750-47050

main47750-47050i200610-200903

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010i200308-200903

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47020i200308-200604

sub47781-47021

main47781-47021i200605-200903

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-47020i200308-200604

sub47781-47021

main47781-47021i200605-200903

21 parts on this diagram · 1 diagram in section
