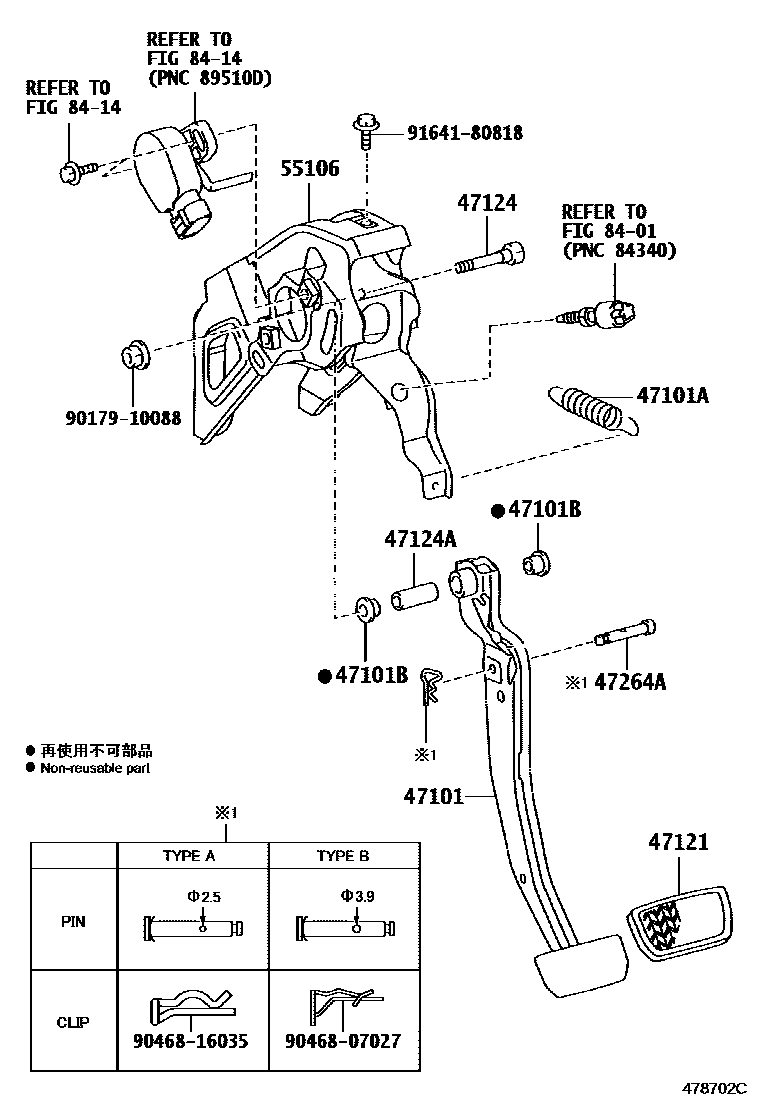

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-47040iNHW20..RHD200308-200903

main47101-47050iNHW20..LHD200308-200903

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16027iNHW20200308-200903

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNHW20200308-200903

47121PAD, BRAKE PEDAL

main47121-52010iNHW20200308-200903

47124SHAFT, BRAKE PEDAL

main90101-10015iNHW20200308-200903

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNHW20200308-200903

47264APIN(FOR PUSH ROD)

main47148-47020iNHW20200308-200606

main47148-47020iNHW20200606-200903

TYPE A

main47148-47030iNHW20200606-200903

TYPE B

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-47040iNHW20..RHD200308-200903

main55106-47050iNHW20..LHD200308-200903

8401

8414

9017910088

main90179-10088

9046807027

main90468-07027

9046816035

main90468-16035

9164180818

main91641-80818

14 parts on this diagram · 2 diagrams in section
