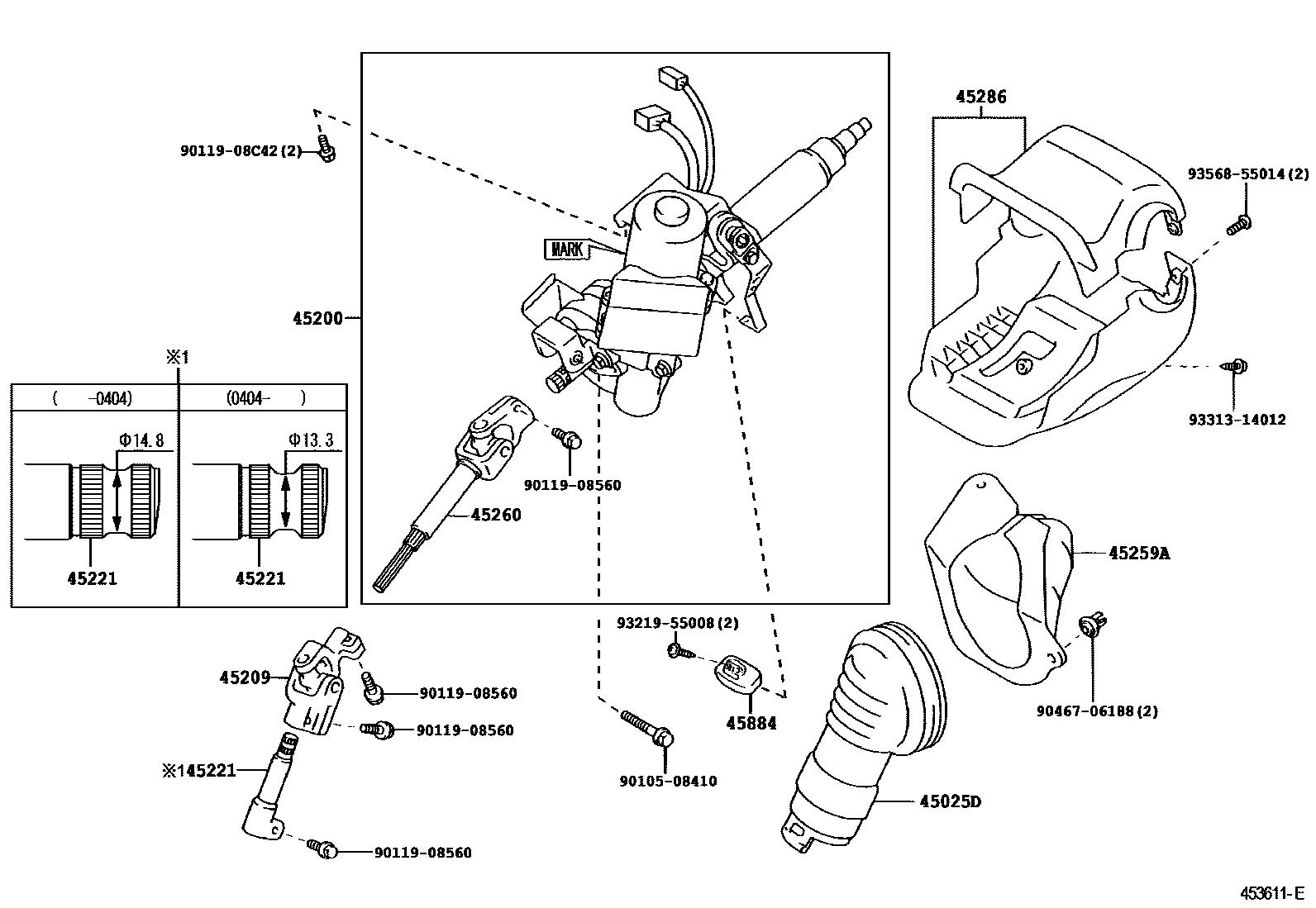

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47010iNHW20..RHD200308-200903

main45025-47020iNHW20..LHD200308-200903

45200POST ASSY, STEERING

main45200-47040iNHW20..RHD200308-200503

MARK 80960-47050

sub45200-47042

main45200-47041iNHW20..RHD200503-200504

MARK 80960-47051

sub45200-47042

main45200-47042iNHW20..RHD200505-200510

MARK 80960-47051

sub45200-47043

main45200-47043iNHW20..RHD200511-200903

main45200-47050iNHW20..LHD200308-200503

MARK 80960-47050

sub45200-47052

main45200-47051iNHW20..LHD200503-200504

MARK 80960-47051

sub45200-47052

main45200-47052iNHW20..LHD200505-200510

MARK 80960-47051

sub45200-47053

main45200-47053iNHW20..LHD200511-200903

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12200iNHW20200308-200509

sub45209-12201

main45209-12201iNHW20200510-200903

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iNHW20200308-200404

sub45221-12281

main45221-12281iNHW20200404-200903

sub45221-47041

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47010iNHW20..RHD200308-200903

main45259-47020iNHW20..LHD200308-200903

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47040iNHW20..RHD200308-200504

sub45260-47041

main45260-47041iNHW20..RHD200505-200510

sub45260-47042

main45260-47042iNHW20..RHD200511-200903

main45260-47050iNHW20..LHD200308-200504

sub45260-47051

main45260-47051iNHW20..LHD200505-200510

sub45260-47052

main45260-47052iNHW20..LHD200511-200903

45286COVER, STEERING COLUMN

main45286-47905-C0iNHW20200308-200903

BLACK,TRIM1#,4#

sub45286-47905

sub45286-47904

45884BRACKET, TILT LEVER

main45884-13010iNHW20200308-200903

9010508410

main90105-08410

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9321955008

main93219-55008

9331314012

main93313-14012

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
