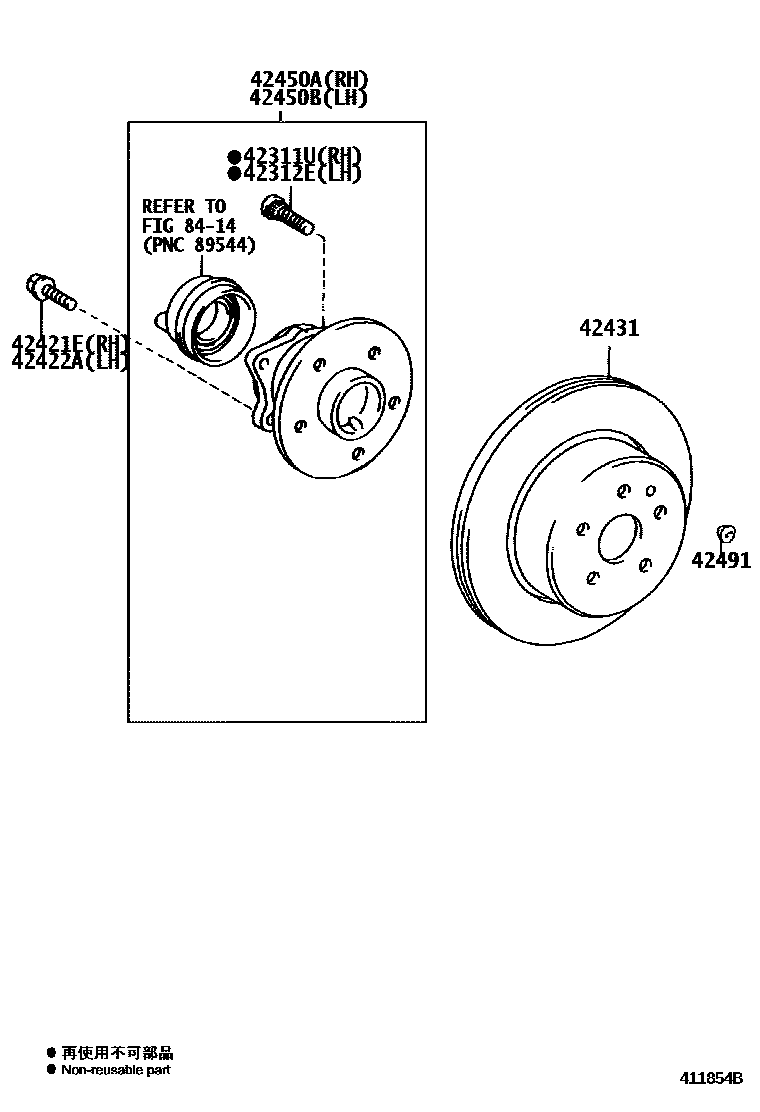

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNHW20¥240200308-200903

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNHW20¥240200308-200903

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10507iNHW20¥120200308-200903

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10507iNHW20¥120200308-200903

42431DISC, REAR

main42431-47030iNHW20¥10,200200308-200903

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-47030iNHW20¥21,000200308-200903

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-47030iNHW20¥21,000200308-200903

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iNHW20¥140200308-200903

8414

9 parts on this diagram · 1 diagram in section
