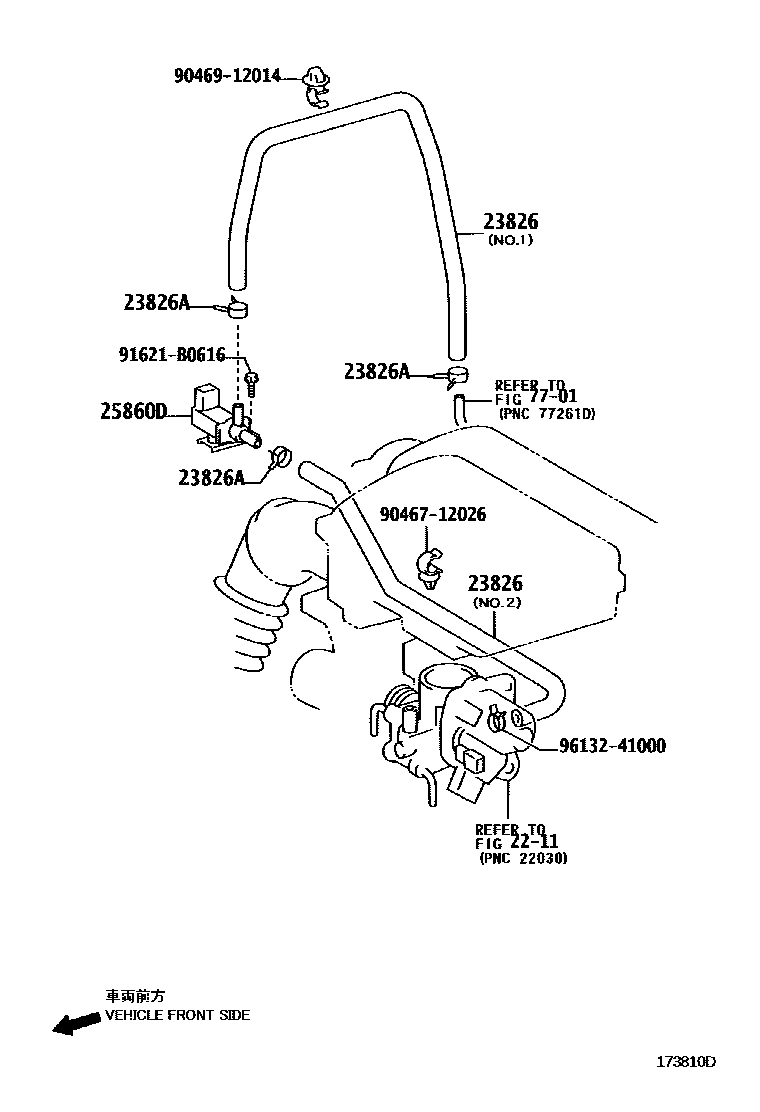

VACUUM PIPING

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21070i1NZFXE..NHW20200308-200903

NO.1

main23826-21090i1NZFXE..NHW20200308-200903

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1NZFXE..NHW20200308-200903

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-21060i1NZFXE..NHW20200308-200903

7701

9046712026

main90467-12026

9046912014

main90469-12014

91621B0616

main91621-B0616

9613241000

main96132-41000

9 parts on this diagram · 1 diagram in section
