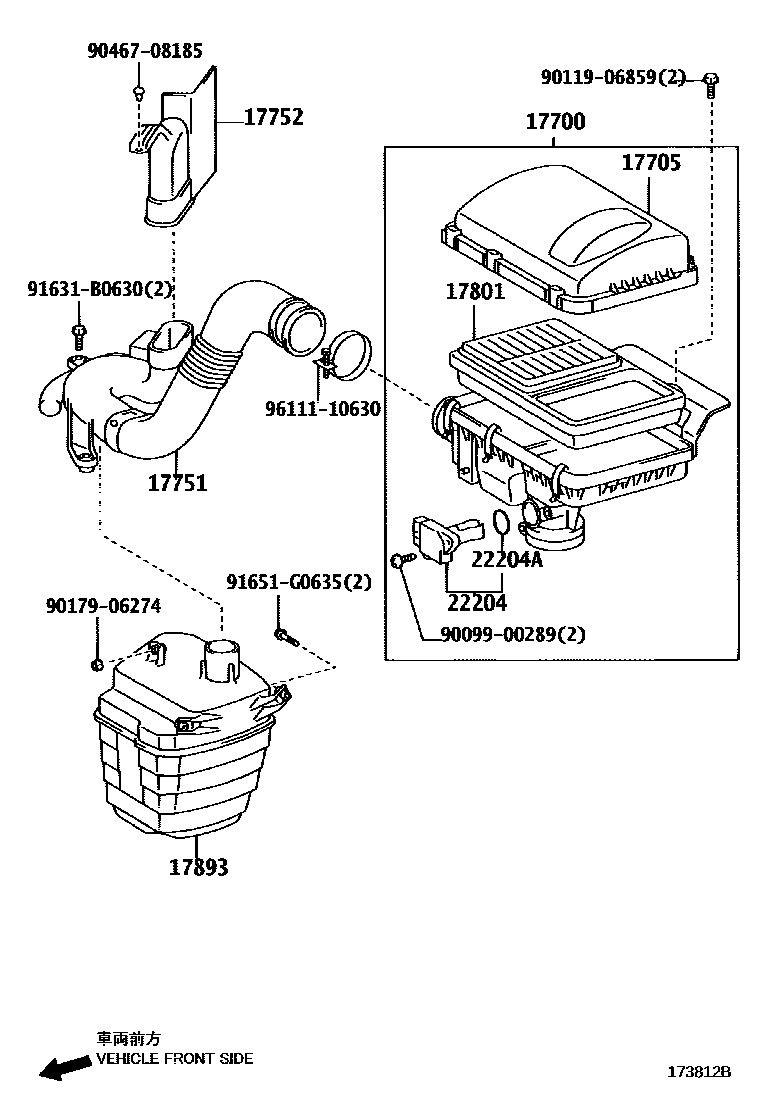

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-21140i1NZFXE..NHW20200308-200903

17705CAP SUB-ASSY, AIR CLEANER

main17705-21110i1NZFXE..NHW20200308-200903

17751INLET, AIR CLEANER, NO.1

main17751-21120i1NZFXE..NHW20200308-200903

17752INLET, AIR CLEANER, NO.2

main17752-21050i1NZFXE..NHW20200308-200903

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21040i1NZFXE..NHW20200308-200903

17893RESONATOR, INTAKE AIR

main17893-21030i1NZFXE..NHW20200308-200903

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i1NZFXE..NHW20200308-200903

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFXE..NHW20200308-200903

9009900289

main90099-00289

9011906859

main90119-06859

9017906274

main90179-06274

9046708185

main90467-08185

91631B0630

main91631-B0630

91651G0635

main91651-G0635

9611110630

main96111-10630

15 parts on this diagram · 1 diagram in section
