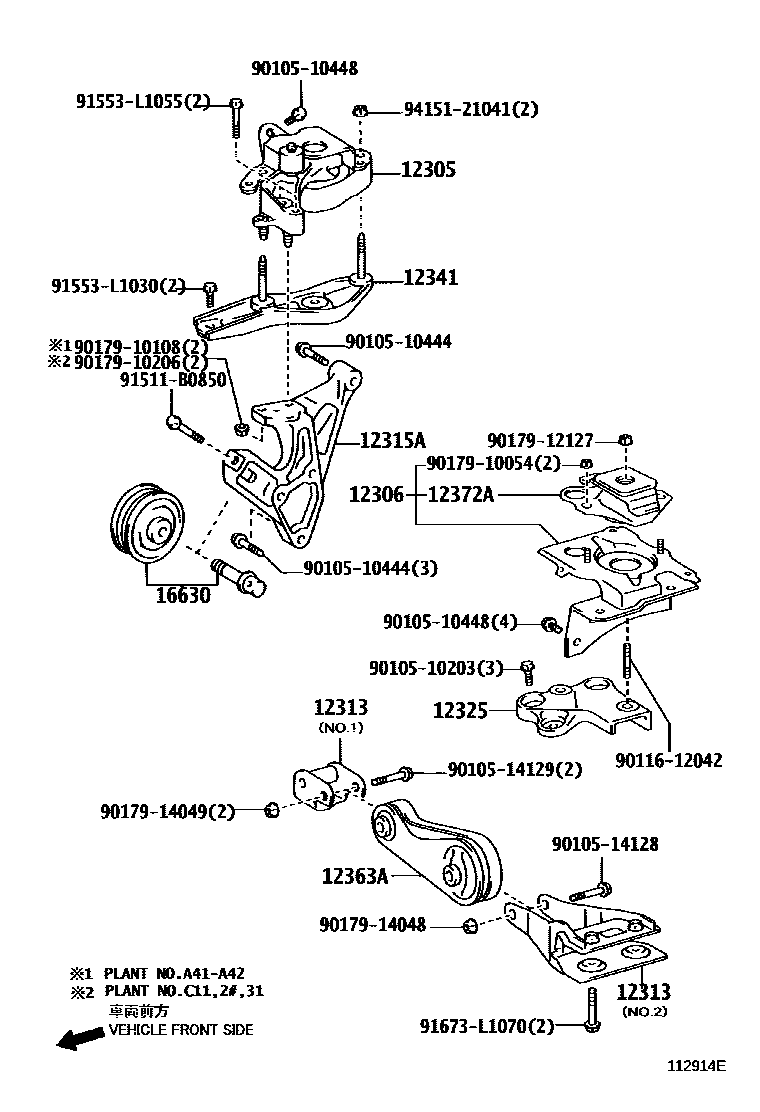

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21190i1NZFXE..NHW20200511-200903

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-21030i1NZFXE..NHW20200308-200511

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-21010i1NZFXE..NHW20200511-200903

NO.1

main12313-21030i1NZFXE..NHW20200308-200511

NO.2

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21050i1NZFXE..NHW20200308-200511

sub12315-21051

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-21150i1NZFXE..NHW20200308-200511

12341SPACER, ENGINE MOUNTING

main12341-21010i1NZFXE..NHW20200308-200511

12363AROD, ENGINE MOVING CONTROL

main12363-21030i1NZFXE..NHW20200308-200511

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21111i1NZFXE..NHW20200308-200511

main12372-21112i1NZFXE..NHW20200810-200903

16630PULLEY ASSY, IDLER

main16630-21020i1NZFXE..NHW20200308-200511

9010510203

main90105-10203

9010510444

main90105-10444

9010510448

main90105-10448

9010514128

main90105-14128

9010514129

main90105-14129

9011612042

main90116-12042

9017910054

main90179-10054

9017910108

main90179-10108

9017910206

main90179-10206

9017912127

main90179-12127

9017914048

main90179-14048

9017914049

main90179-14049

91511B0850

main91511-B0850

91553L1030

main91553-L1030

91553L1055

main91553-L1055

91673L1070

main91673-L1070

9415121041

main94151-21041

26 parts on this diagram · 1 diagram in section
