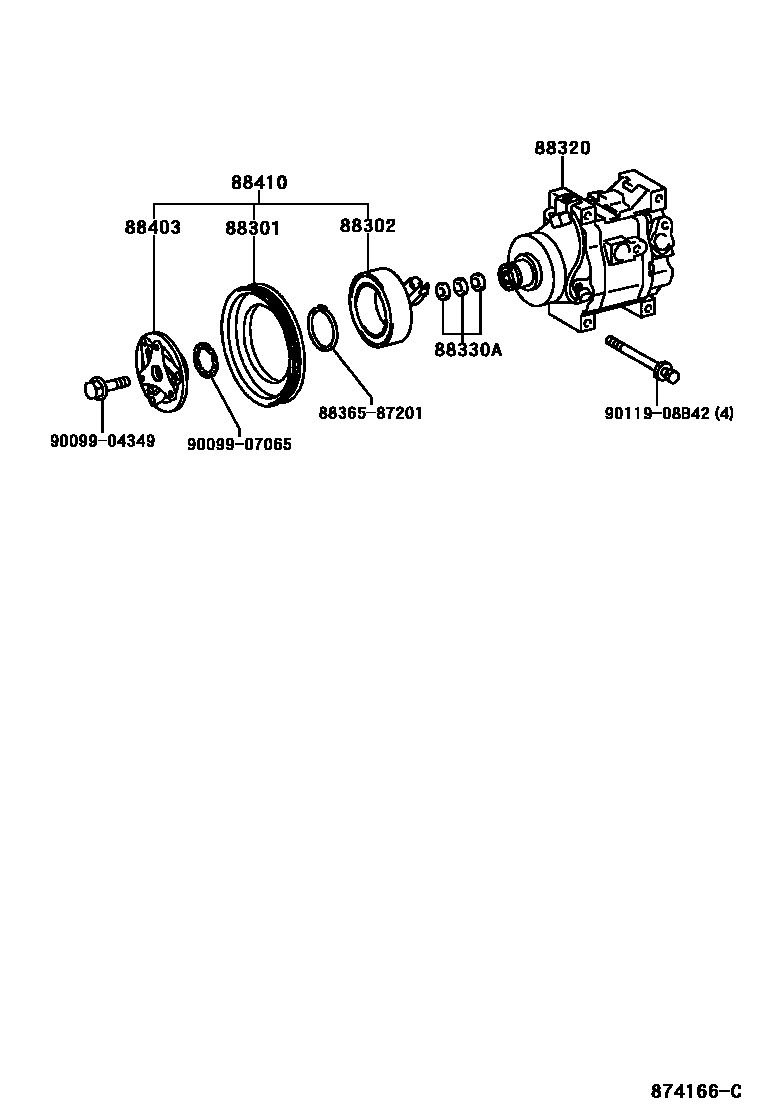

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-47030iNHW11200008-200208

main88412-47040iNHW11200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iNHW11200008-200208

main88411-1A050iNHW11200208

88320COMPRESSOR ASSY, COOLER

main88320-47030iNHW11200005-200208

sub88320-17110

main88320-47040iNHW11200208

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iNHW11200005

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iNHW11200008-200208

main88403-1A020iNHW11200208

88410CLUTCH ASSY, MAGNET

main88410-47030iNHW11200005-200208

main88410-47040iNHW11200208

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

10 parts on this diagram · 1 diagram in section
