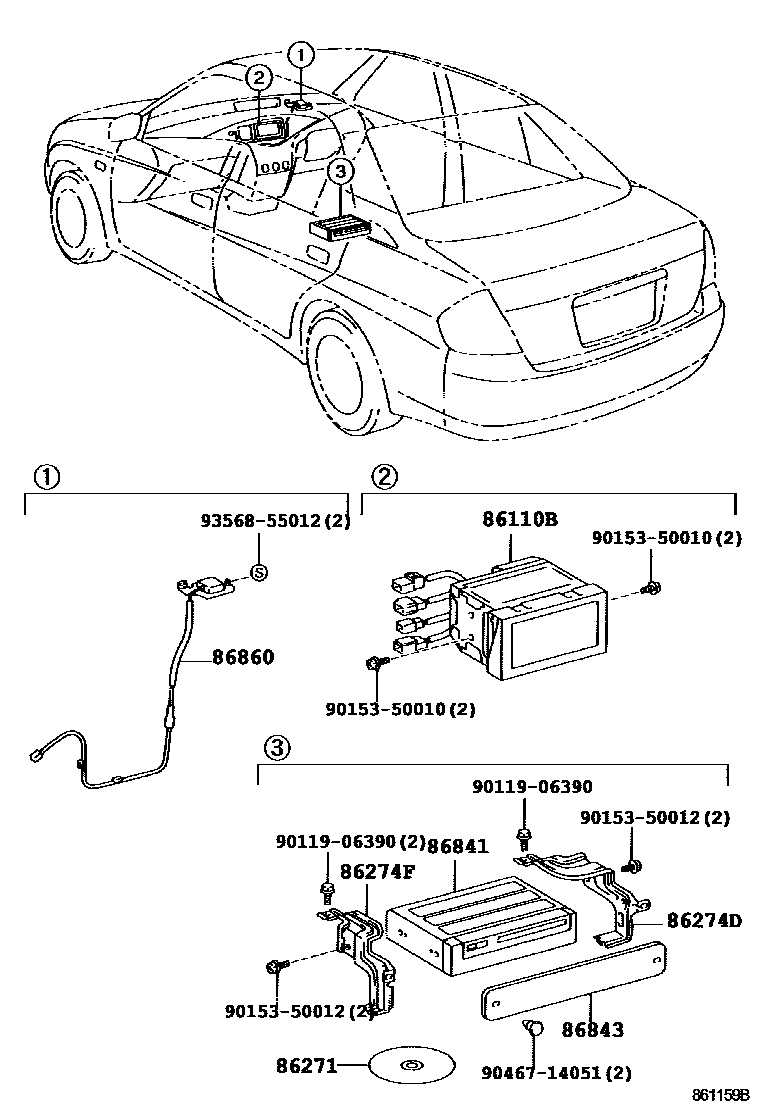

NAVIGATION & FRONT MONITOR DISPLAY

86110BMULTI-DISPLAY ASSY

main86110-47040iNHW11200005

FUJITSU TEN

86271DISC, DISC PLAYER

main86271-24110iNHW11..ARL200108-200211

sub86271-24111

main86271-24111iNHW11..ARL200211

main86271-24120iNHW11..EUR200108-200210

sub86271-24121

main86271-24121iNHW11..EUR200210

sub86271-24122

86274DBRACKET, DISC PLAYER

main86274-47030iNHW11..EUR200005

86274FBRACKET, DISC PLAYER, NO.2

main86274-47040iNHW11..EUR200005

86841COMPUTER, NAVIGATION

main86841-13020iNHW11..EUR200108

main86841-47030iNHW11200005-200108

86843COVER, NAVIGATION COMPUTER

main86843-47010iNHW11200005

86860ANTENNA ASSY, NAVIGATION

main86860-47020iNHW11..RHD200005-200108

sub86860-47040

main86860-47030iNHW11..LHD200005-200108

sub86860-47050

main86860-47040iNHW11..RHD200108

main86860-47050iNHW11..LHD200108

9011906390

main90119-06390

9015350010

main90153-50010

9015350012

main90153-50012

9046714051

main90467-14051

9356855012

main93568-55012

12 parts on this diagram · 1 diagram in section
