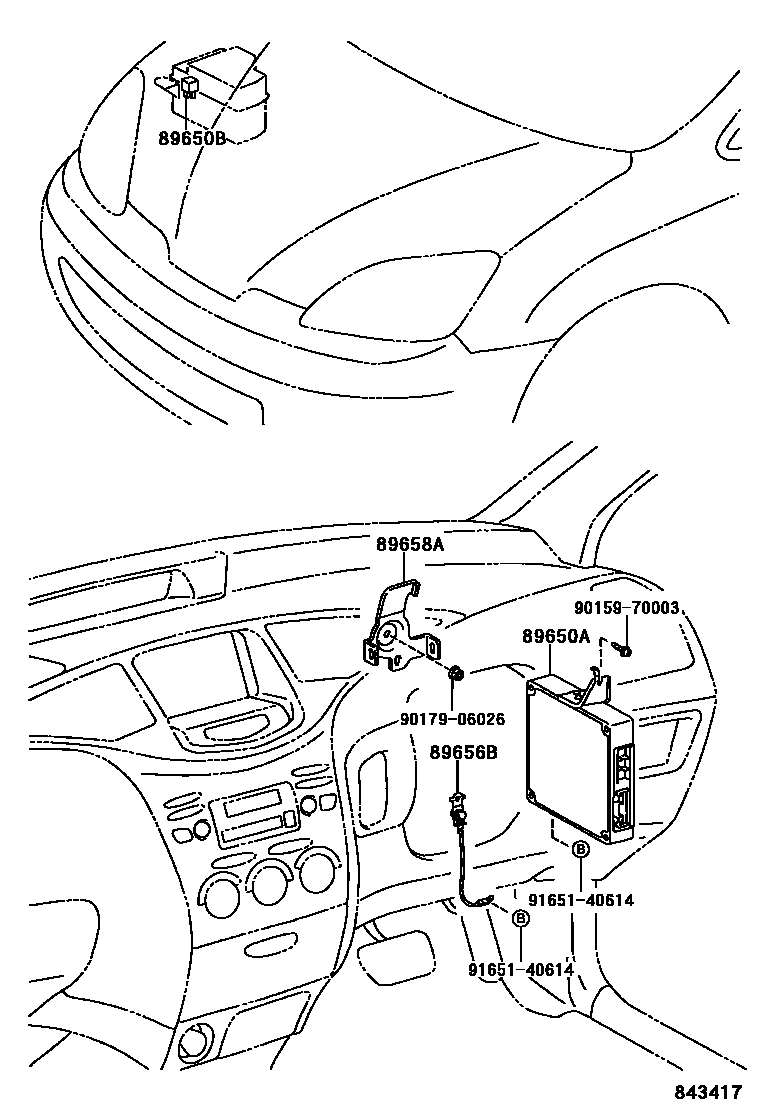

POWER STEERING COMPUTER

0001 1 0002 1

89650ACOMPUTER ASSY, POWER STEERING

main89650-47030iNHW11..RHD200005-200009

sub89650-47031

main89650-47031iNHW11..RHD200009-200110

sub89650-47032

main89650-47032iNHW11..RHD200110-200305

sub89650-47033

main89650-47033iNHW11..RHD200305

sub89650-47170

main89650-47050iNHW11..LHD200005-200009

sub89650-47051

main89650-47051iNHW11..LHD200009-200110

sub89650-47052

main89650-47052iNHW11..LHD200110-200305

sub89650-47053

main89650-47053iNHW11..LHD200305

sub89650-47180

89650BRELAY, POWER STEERING

main90987-02016iNHW11200005

sub90987-02025

89656BWIRE, POWER STEERING EARTH

main89656-47010iNHW11..RHD200005

main89656-47030iNHW11..LHD200005

89658ABRACKET, POWER STEERING COMPUTER

main89658-47010iNHW11..RHD200005

main89658-47030iNHW11..LHD200005

9015970003

main90159-70003

9017906026

main90179-06026

9165140614

main91651-40614

7 parts on this diagram · 2 diagrams in section
