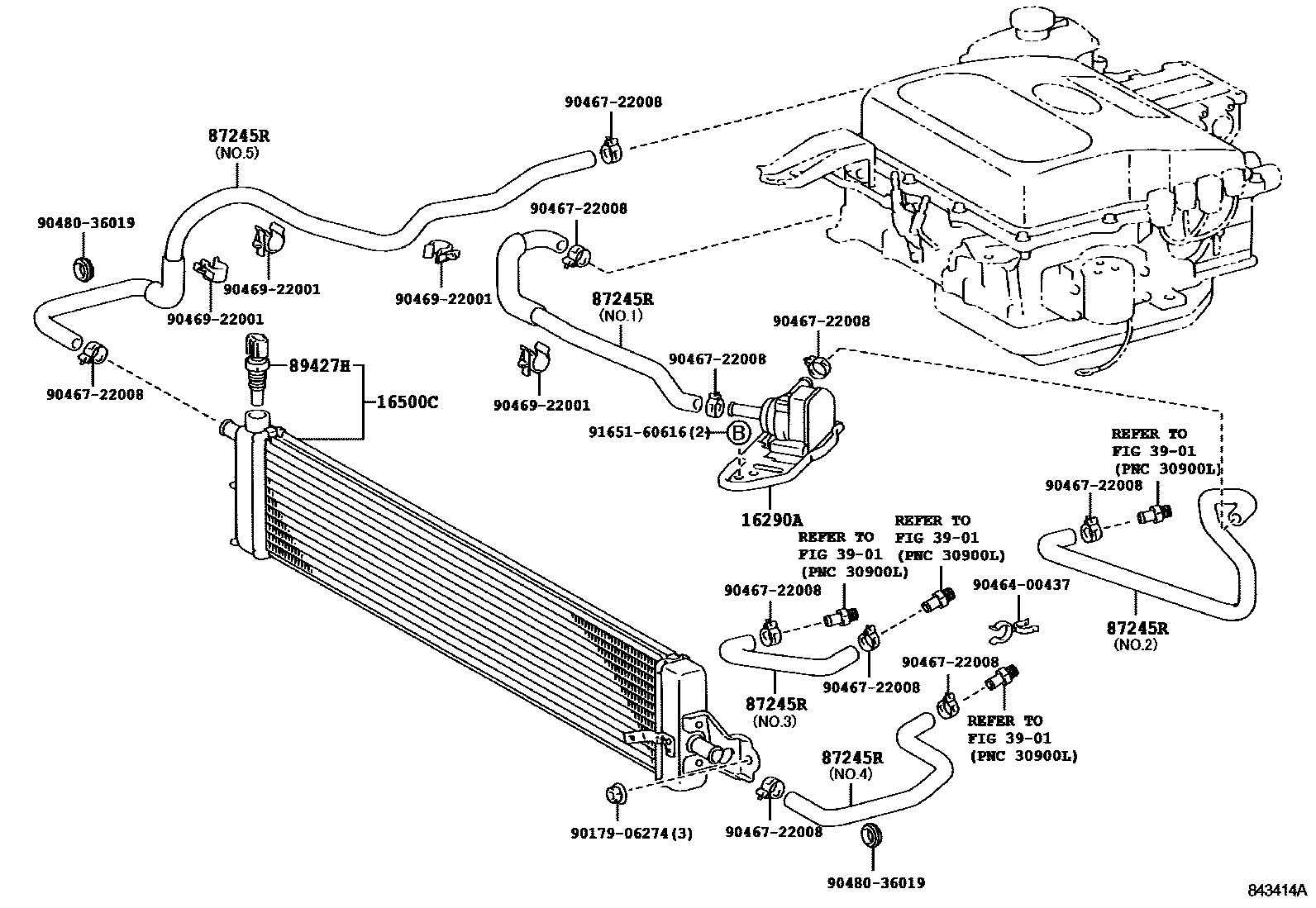

INVERTER COOLING
16290APUMP ASSY, WATER W/MOTOR & BRACKET
subG9020-47021
16500CRADIATOR ASSY, SUB W/FAN
3901
87245RHOSE, WATER
NO.1
NO.2
NO.3
NO.4
NO.5
89427HSWITCH, TEMPERATURE (FOR RADIATOR FAN)
9017906274
main90179-06274
9046400437
main90464-00437
9046722008
main90467-22008
9046922001
main90469-22001
9048036019
main90480-36019
9165160616
main91651-60616
11 parts on this diagram · 1 diagram in section
