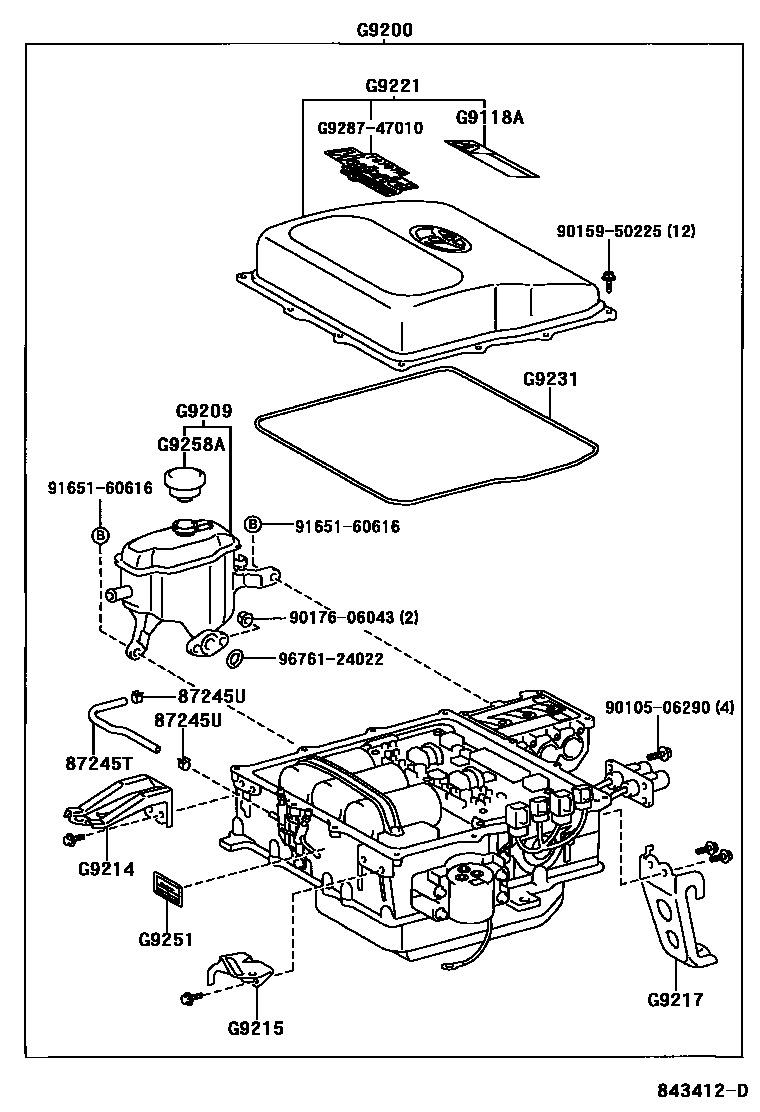

HEV INVERTER

0001 1 0002 1

87245THOSE, INVERTER WATER, NO.2

main87245-47170iNHW11200005

87245UCLAMP OR CLIP (FOR WATER HOSE)

main90467-11009iNHW11200005-200204

sub96135-51100

main96135-51100iNHW11200204

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911847010iNHW11200005

subG9118-47020

G9200INVERTER ASSY, W/CONVERTER

mainG920047060iNHW11200005

subG9200-47030

mainG920047070iNHW11..LHD200005

COLD SPEC

subG9200-47071

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920947020iNHW11200005

G9214BRACKET, INVERTER, NO.1

mainG921447020iNHW11200005

G9215BRACKET, INVERTER, NO.2

mainG921547020iNHW11200005

G9217BRACKET, INVERTER, NO.4

mainG921747020iNHW11200005

G9221COVER, INVERTER

mainG902247010iNHW11200005

G9231GASKET, INVERTER COVER

mainG923147020iNHW11200005

G9251SEAT, INVERTER NAME

mainG925147010iNHW11200005

G9258ACAP, INVERTER RESERVE TANK

mainG925830010iNHW11200005

subG9258-28012

9010506290

main90105-06290

9015950225

main90159-50225

9017606043

main90176-06043

9165160616

main91651-60616

9676124022

main96761-24022

G928747010PLATE, INVERTER COVER

mainG9287-47010

18 parts on this diagram · 2 diagrams in section
