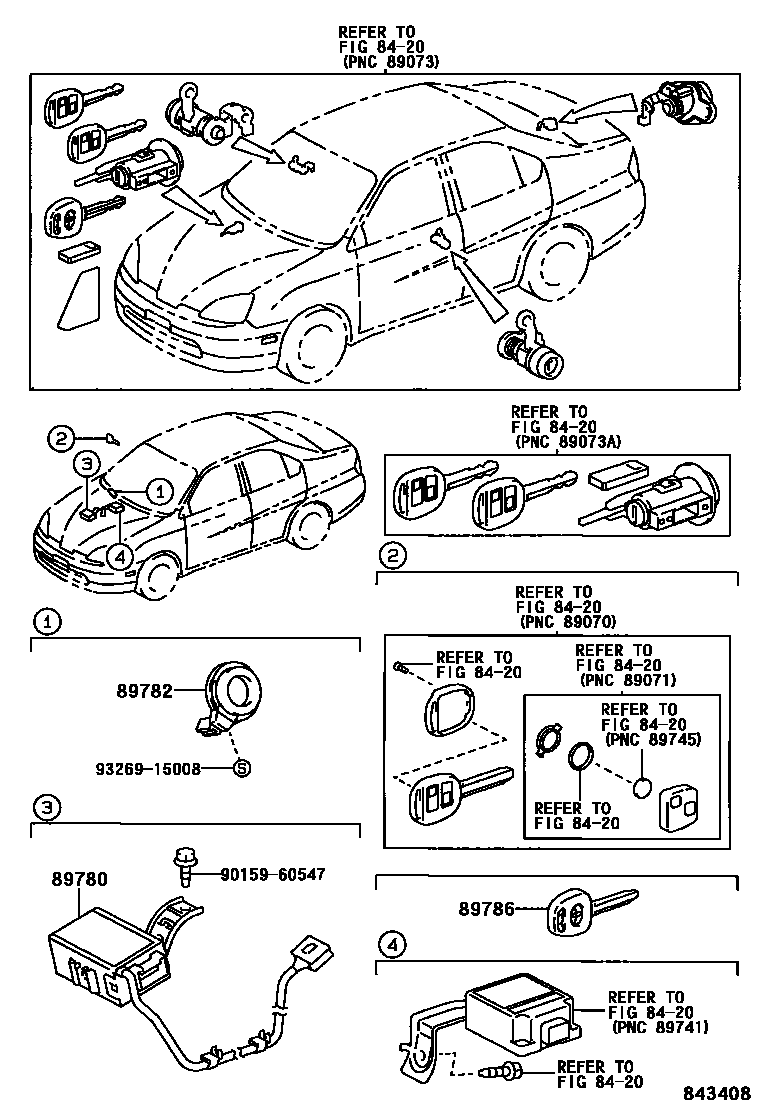

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1THEFT WARNING SYSTEM

8420

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-47010iNHW11200005

89782COIL, TRANSPONDER KEY

main89782-44010iNHW11..RHD200005

main89782-47010iNHW11..LHD200005

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iNHW11200005

9015960547

main90159-60547

9326915008

main93269-15008

6 parts on this diagram · 2 diagrams in section
