ABS & VSC

0001 1 0002 1

86650KBUZZER ASSY, SKID CONTROL

main86650-30180iNHW11¥2,930200005

sub86652-51010¥3,820

88263KRELAY, HYDRO MOTOR, NO.1

main89633-24010iNHW11¥3,870200005

88263LRELAY, HYDRO MOTOR, NO.2

main88263-24020iNHW11¥3,890200005

88263MRELAY, ABS SOLENOID

main88263-24030iNHW11¥3,890200005

89516WIRE, SKID CONTROL SENSOR

main89516-47030iNHW11¥4,270200005

RH

main89516-47040iNHW11¥4,270200005

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-47020iNHW11..RHD¥103,000200005

main89540-47030iNHW11..LHD¥103,000200005

89542SENSOR, SPEED, FRONT RH

main89542-47010iNHW11¥21,700200005

89543SENSOR, SPEED, FRONT LH

main89543-47010iNHW11¥21,700200005

89544SENSOR, SKID CONTROL

main89544-52020iNHW11¥13,500200005

sub89544-52030¥13,300

89639AWIRE, BRAKE CONTROL

main89639-47030iNHW11¥2,860200005

9015970003

main90159-70003¥60

9017906074

main90179-06074¥90

91611B0614

main91611-B0614¥110

9165140614

main91651-40614¥160

91651B0618

main91651-B0618¥100

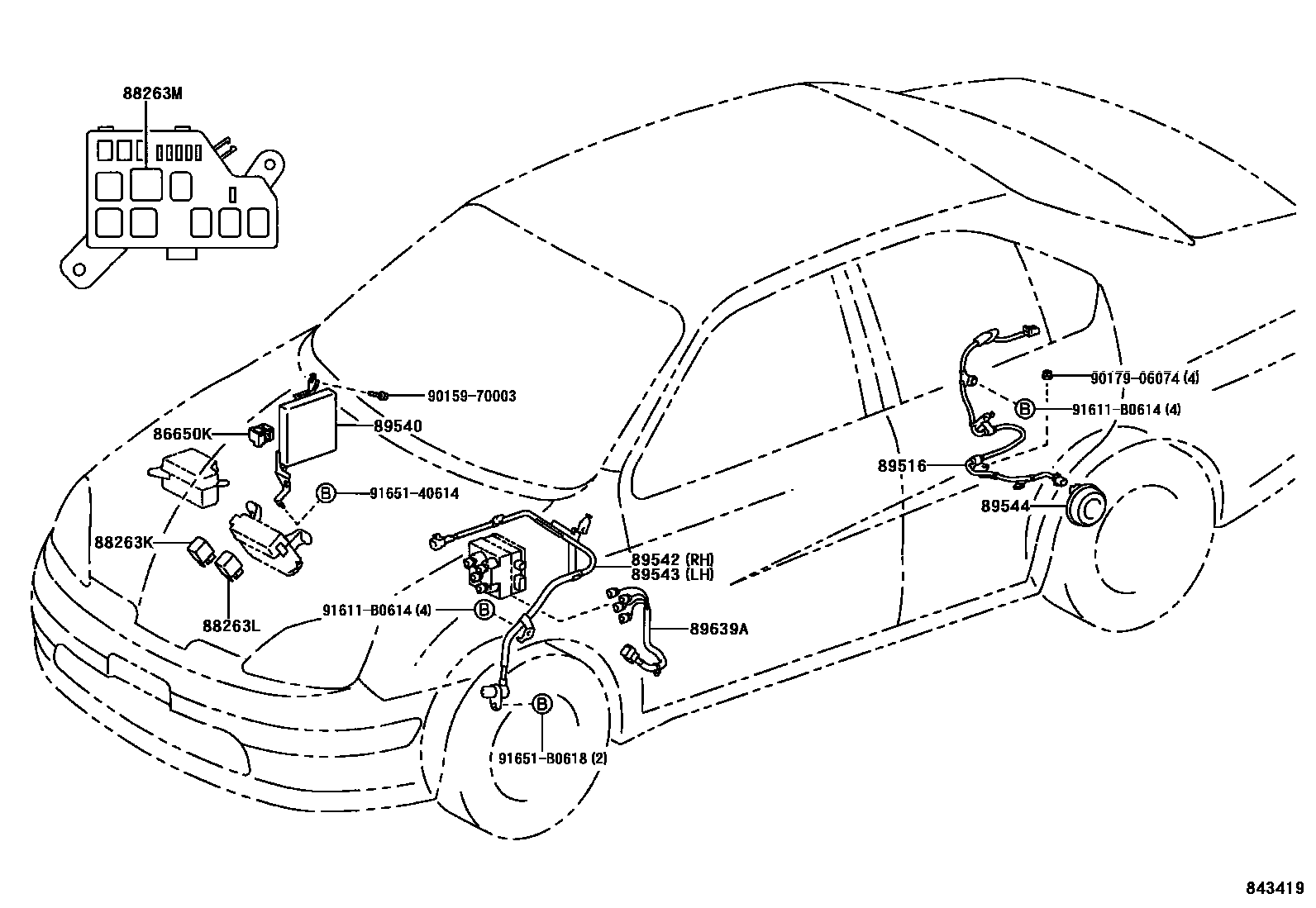

15 parts on this diagram · 2 diagrams in section
