SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1IGNITION & COMBINATION SWITCH0009 1DOOR,ROOF,FLOOR & LUGGAGE

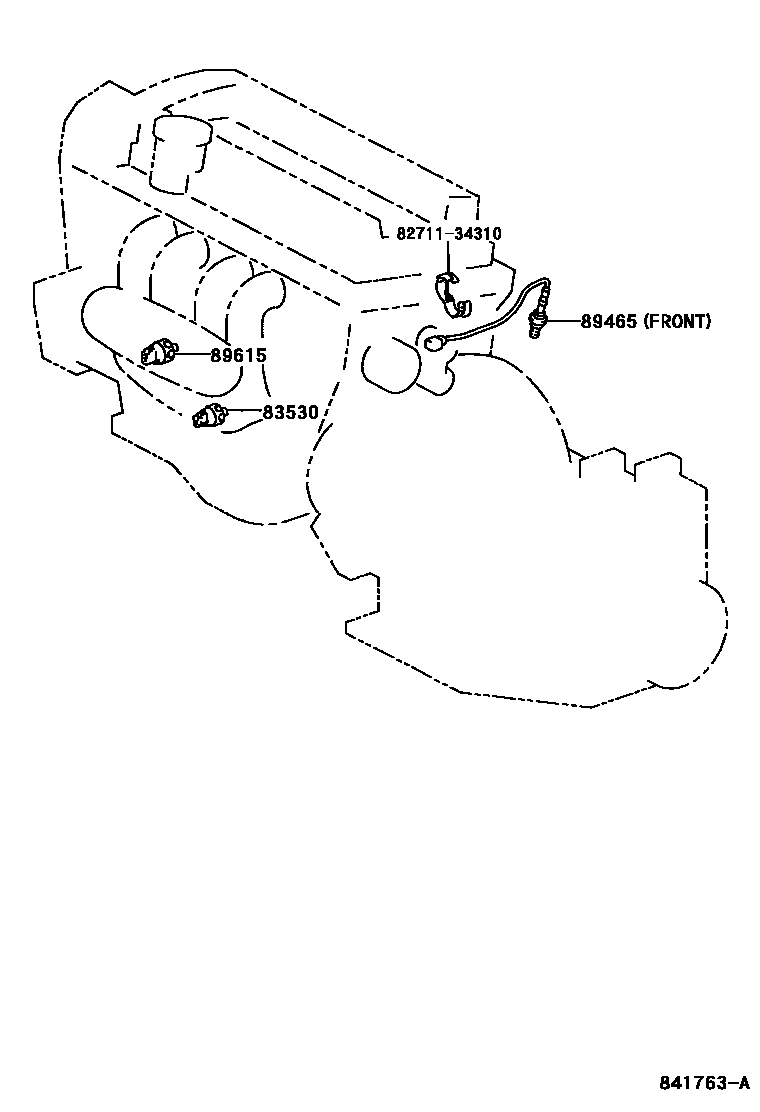

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNHW11200005

DENSO

main83530-60020iNHW11200005

YAZAKI

89465SENSOR, OXYGEN

main89465-47050iNHW11200005

FRONT

main89465-47060iNHW11200005

REAR

89615SENSOR, KNOCK CONTROL

main89615-52010iNHW11200005-200007

MATSUSHITA

main89615-52030iNHW11200005

DENSO

main89615-52040iNHW11200005

TOYOTA

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

4 parts on this diagram · 9 diagrams in section
