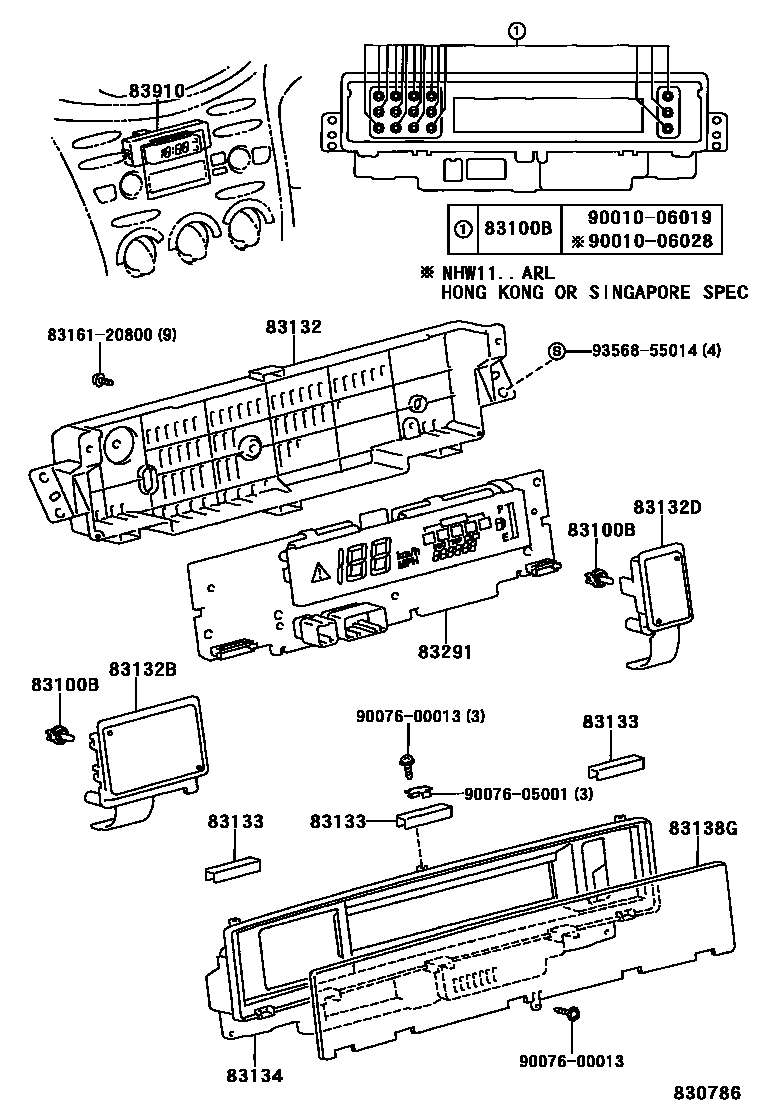

METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90010-06019iNHW11..EUR200005

12V 1.12W

main90010-06028iNHW11..RHD..EUR200108

12V 1.12W,W(SOCKET)

83132CASE, COMBINATION METER

main83843-47010iNHW11..RHD200005

83132BCASE, COMBINATION METER NO.3

main83841-47070iNHW11..RHD..EUR200108

HONG KONG OR SINGAPORE SPEC

main83842-47050iNHW11..LHD200005

main83842-47060iNHW11..RHD..EUR200005

83132DCASE, COMBINATION METER, NO.2

main83841-47050iNHW11..LHD200005

main83841-47060iNHW11..RHD200005

83133PLATE, COMBINATION METER, NO.1

main83811-47010×3iNHW11..RHD200005

83134COVER, COMBINATION METER, NO.1

main83821-47020iNHW11..RHD200005

main83821-47030iNHW11..LHD200005

83138GGLASS, COMBINATION METER

main83852-47010iNHW11..RHD200005

main83852-47030iNHW11..LHD200005

83291COMPUTER, COMBINATION METER

main83291-47050iNHW11..LHD200005

main83291-47060iNHW11..RHD..EUR200005

main83291-47070iNHW11..RHD..EUR200108

HONG KONG OR SINGAPORE SPEC

83910CLOCK ASSY

main83910-47010iNHW11200005

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

9007600013

main90076-00013

9007605001

main90076-05001

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
