WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR 0011 1CLAMP & BRACKET 0012 1CABLE BOND 0013 1CONNECTOR

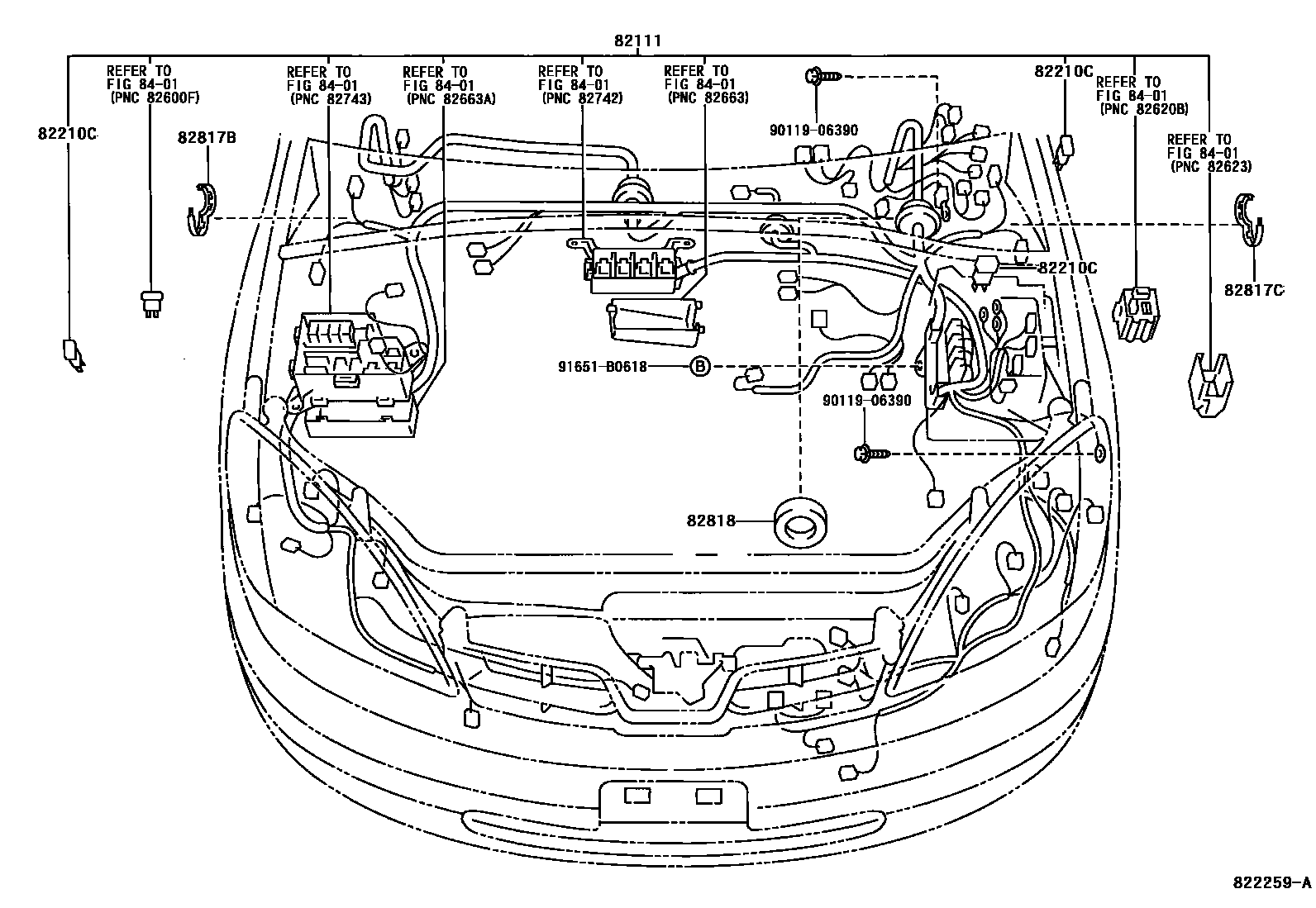

82111WIRE, ENGINE ROOM MAIN

main82111-47050iNHW11..RHD..EUR200005

main82111-47080iNHW11..LHD200005

main82111-47090iNHW11..RHD..EUR200106

HONG KONG SPEC

main82111-47100iNHW11..LHD200005

COLD SPEC

82210CFUSIBLE LINK

main90982-08246iNHW11200005

100A,TERM.:MALE,BLUE

main90982-08254iNHW11200005

120A,TERM.:MALE,WHT,TAIHEIYO

main90982-08274iNHW11200005

120A,TERM.:MALE,WHT,YAZAKI

main90982-08280×2iNHW11200005

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08281iNHW11200005

40A,TERM.:FEMALE,GRN,YAZAKI

main90982-08282iNHW11..LHD200005

50A,TERM.:FEMALE,RED,YAZAKI

main90982-08283×2iNHW11200005

30A,TERM.:FEMALE,PNK,TAIHEIYO

main90982-08284iNHW11200005

40A,TERM.:FEMALE,GRN,TAIHEIYO

main90982-08285iNHW11..LHD200005

50A,FEMALE,RED,32VDC,TAIHEIYO

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-2B730iNHW11200005

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-2B730iNHW11200005

82818PROTECTOR, WIRING HARNESS, NO.2

main82818-47010iNHW11..LHD200005

8401

9011906390

main90119-06390

91651B0618

main91651-B0618

8 parts on this diagram · 13 diagrams in section
