INTERIOR LAMP

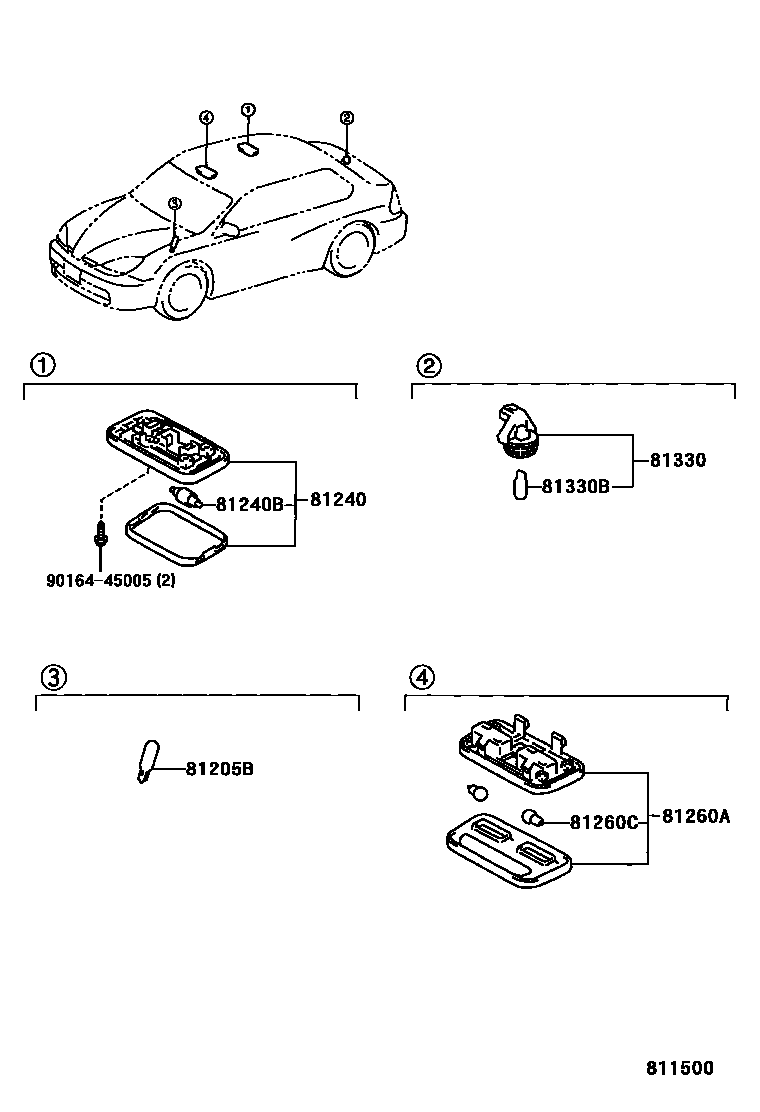

Parts diagram
81205BBULB, ASH RECEPTACLE LAMP
main90981-11018i200005
12V 1.2W W/O SOCKET
81240LAMP ASSY, ROOM, NO.1
main81240-46010-B3i200005
MD.CHARCOAL,TRIM9#
81240BBULB, ROOM LAMP, NO.1
main90981-14011i200005
12V 8W
81260ALAMP ASSY, MAP
main81260-12100-B1i200005
MD.CHARCOAL,TRIM9#
81260CBULB(FOR MAP LAMP)
main90981-12005×2i200005
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-12020i200005
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-11020i200005
12V 3.8W
9016445005

8 parts on this diagram · 1 diagram in section
