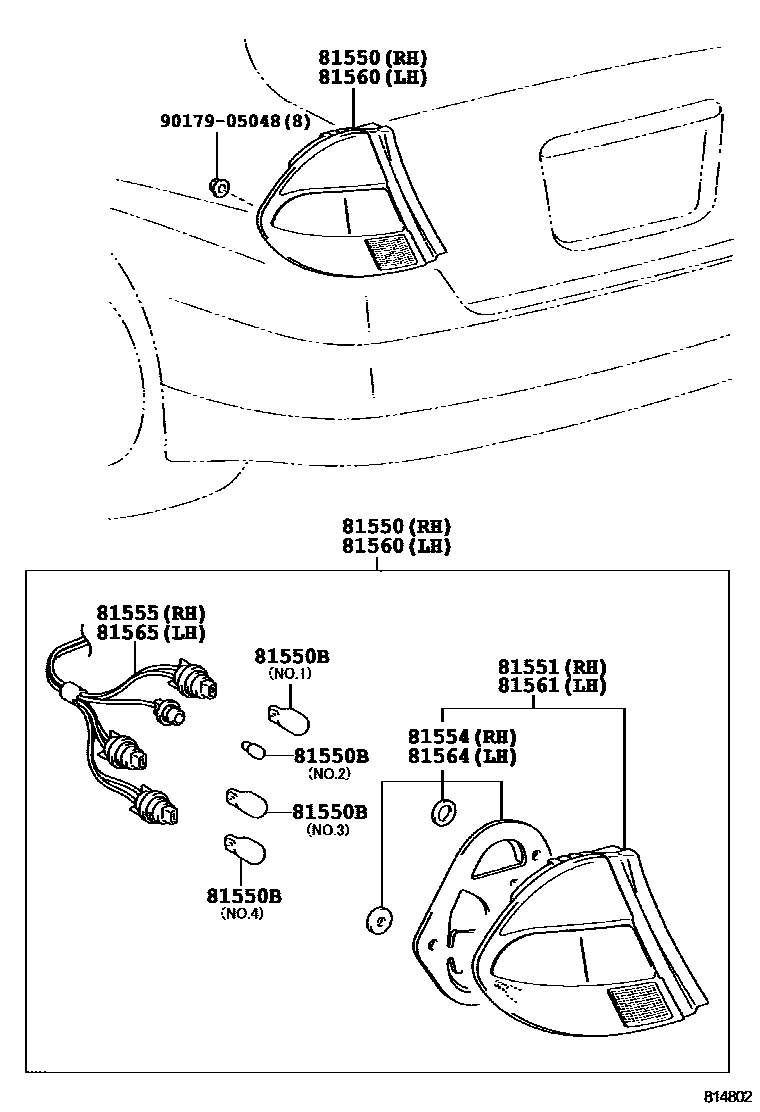

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-47040iNHW11200005

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2iNHW11200005-200106

12V 16W,NO.2

main90981-11048×2iNHW11200106

12V 21/5W,NO.4

sub90981-13044

main90981-11059×2iNHW11200106

12V 16W,NO.2

main90981-13043×2iNHW11200106

12V 21W,NO.1

main90981-13050×2iNHW11200005-200106

12V 21W,NO.1

main90981-13051×2iNHW11200005-200106

12V 21/5W,NO.4

main90981-15009×2iNHW11200106

12V 21W,AMBER,NO.3

main90981-15010×2iNHW11200005-200106

12V 21W,NO.3

81551LENS, REAR COMBINATION LAMP, RH

main81551-47040iNHW11200005

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-47020iNHW11200005

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-47040iNHW11200005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-47040iNHW11200005

81561LENS, REAR COMBINATION LAMP, LH

main81561-47040iNHW11200005

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-47020iNHW11200005

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-47040iNHW11200005

9017905048

main90179-05048

10 parts on this diagram · 1 diagram in section
