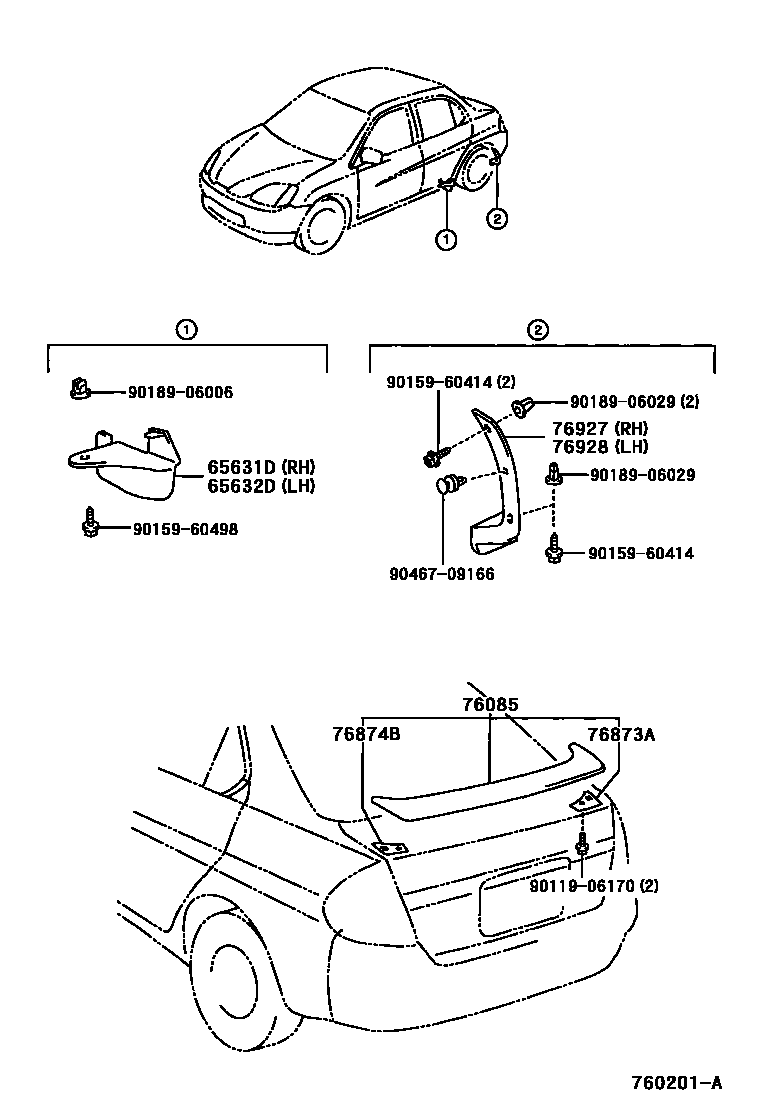

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47010iNHW11200005

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47010iNHW11200005

76085SPOILER SUB-ASSY, REAR

main76085-47010-A0iNHW11..ARL200005-200212

SUPER WHITE 2,040

sub76085-47904

main76085-47010-B0iNHW11200005

SILVER ME.GR.,1C5

sub76085-47904

main76085-47010-C0iNHW11..EUR200208-200212

BLACK,202

sub76085-47904

main76085-47010-D0iNHW11200208

BORDEAUX MC.,3P2

sub76085-47904

main76085-47010-G0iNHW11200005

DARK GREEN MC.,6R4

sub76085-47904

main76085-47010-H0iNHW11200005

LT.AQUA ME.OP.,761

sub76085-47904

main76085-47010-J0iNHW11200005

DK.BLUE MC.,8K8

sub76085-47904

main76085-47010-J1iNHW11200005-200208

BLUE M.M.,8P5

sub76085-47904

76873APROTECTOR, REAR SPOILER, RH

main76781-47010iNHW11200005

76874BPROTECTOR, REAR SPOILER, LH

main76782-47010iNHW11200005

76927PROTECTER, REAR MUDGUARD, RH

main76927-47020iNHW11200005

76928PROTECTER, REAR MUDGUARD, LH

main76928-47020iNHW11200005

9011906170

main90119-06170

9015960414

main90159-60414

9015960498

main90159-60498

9018906006

main90189-06006

9018906029

main90189-06029

9046709166

main90467-09166

13 parts on this diagram · 1 diagram in section
