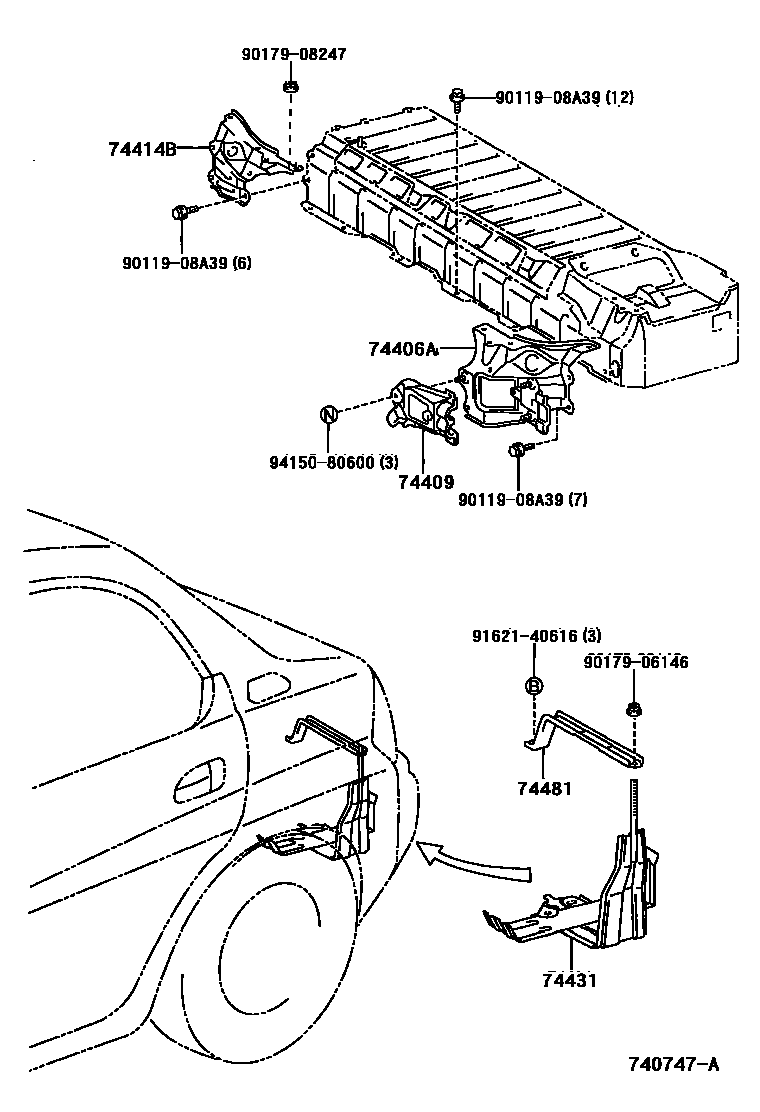

BATTERY CARRIER

74406ACARRIER SUB-ASSY, BATTERY, UPPER LH

main74406-47010iNHW11200005

74409BRACKET SUB-ASSY, BATTERY CARRIER CATCH

main74409-47011iNHW11200005

74414BREINFORCEMENT, BATTERY BRACKET

main74414-47010iNHW11200005

74431TRAY, BATTERY

main74402-47030iNHW11200005

74481CLAMP, BATTERY HOLD DOWN

main74481-47010iNHW11200005

9011908A39

main90119-08A39

9017906146

main90179-06146

9017908247

main90179-08247

9162140616

main91621-40616

9415080600

main94150-80600

10 parts on this diagram · 1 diagram in section
