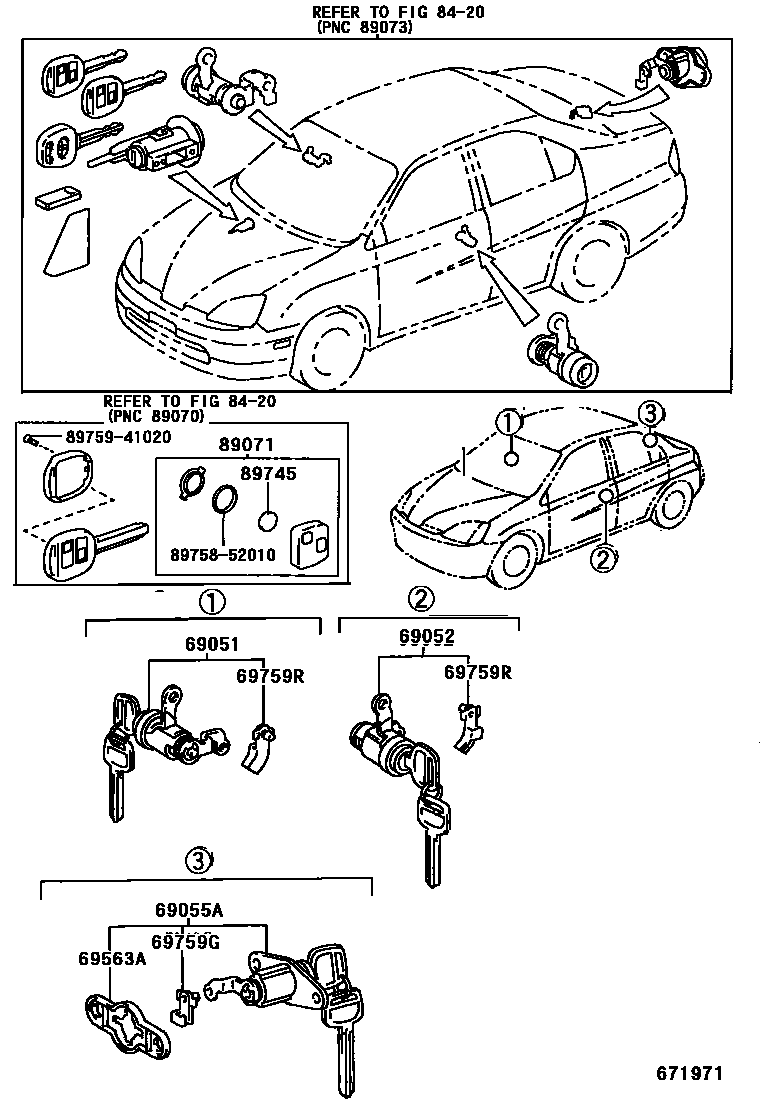

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-47040iNHW11200005

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-47040iNHW11200005

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-47040iNHW11200005

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12100iNHW11200005

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090iNHW11200005

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iNHW11200005

RH

main69759-12090iNHW11200005

LH

8420

7 parts on this diagram · 1 diagram in section
