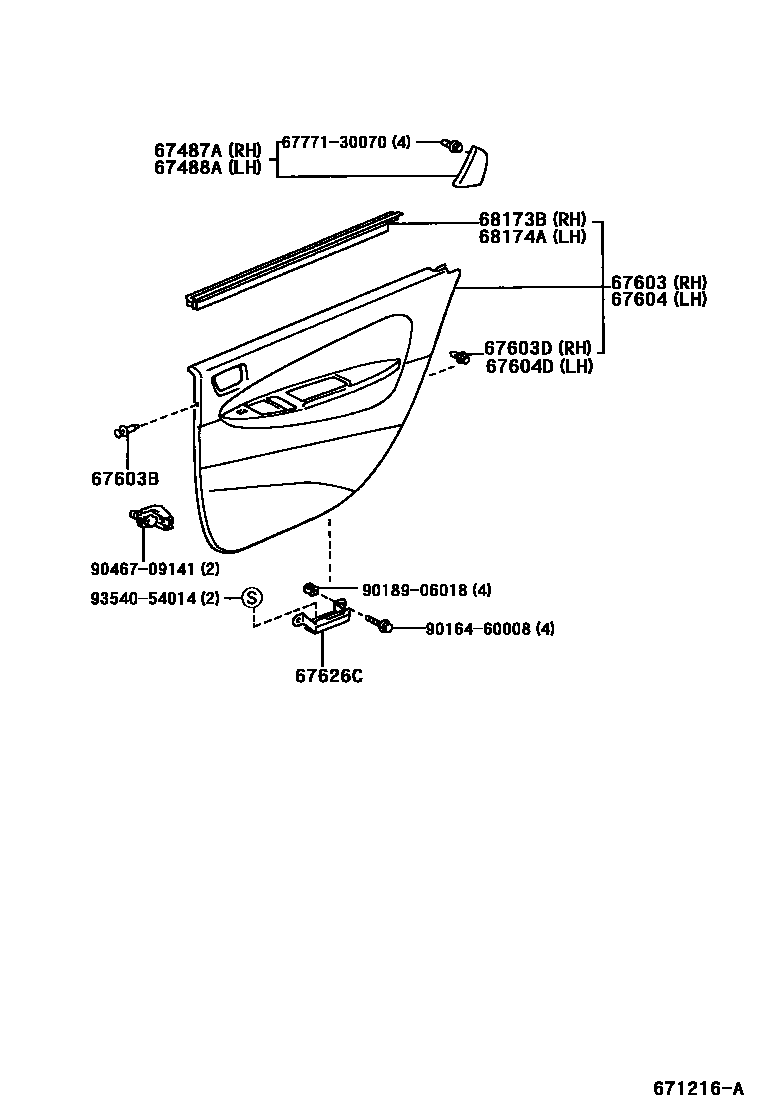

REAR DOOR PANEL & GLASS
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
LT.AMETHYST,TRIM9#
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
LT.AMETHYST,TRIM9#
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
AMETHYST,TRIM9#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67603DRETAINER, REAR DOOR TRIM, RH
YELLOW GREEN
RED
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
AMETHYST,TRIM9#
67604DRETAINER, REAR DOOR TRIM, LH
YELLOW GREEN
RED
67626CBRACKET, REAR DOOR TRIM, NO.2
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
9016460008
9018906018
9046709141
9354054014
15 parts on this diagram · 2 diagrams in section
