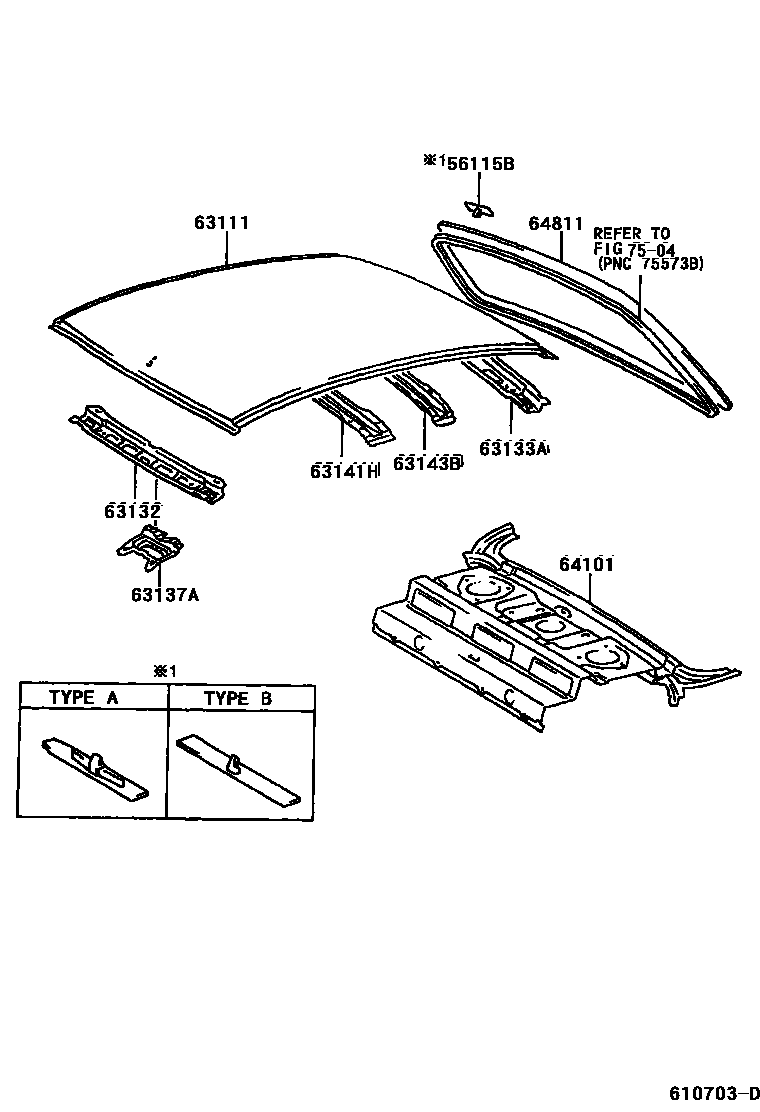

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-33030iNHW11200005

TYPE A:REFER TO ILLUSTRATION

main56116-35040iNHW11200005

TYPE B:REFER TO ILLUSTRATION

63111PANEL, ROOF

main63111-47010iNHW11200005

63132PANEL, WINDSHIELD HEADER, INNER

main63132-47010iNHW11200005

63133AFRAME, BACK WINDOW, UPPER

main63133-47010iNHW11200005

63137ABRACKET, DOME LAMP, NO.1

main63137-47010iNHW11200005

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-47010iNHW11200005

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47010iNHW11200005

64101PANEL SUB-ASSY, UPPER BACK

main64101-47030iNHW11..EUR200005

main64101-47040iNHW11..ARL200108

64811GLASS, BACK WINDOW

main64811-47050iNHW11200005-200211

*UVCEHT,T=2.8,GREEN

sub64811-47051

main64811-47051iNHW11200211

*UVCEHT,T=2.8,GREEN

7504

10 parts on this diagram · 1 diagram in section
