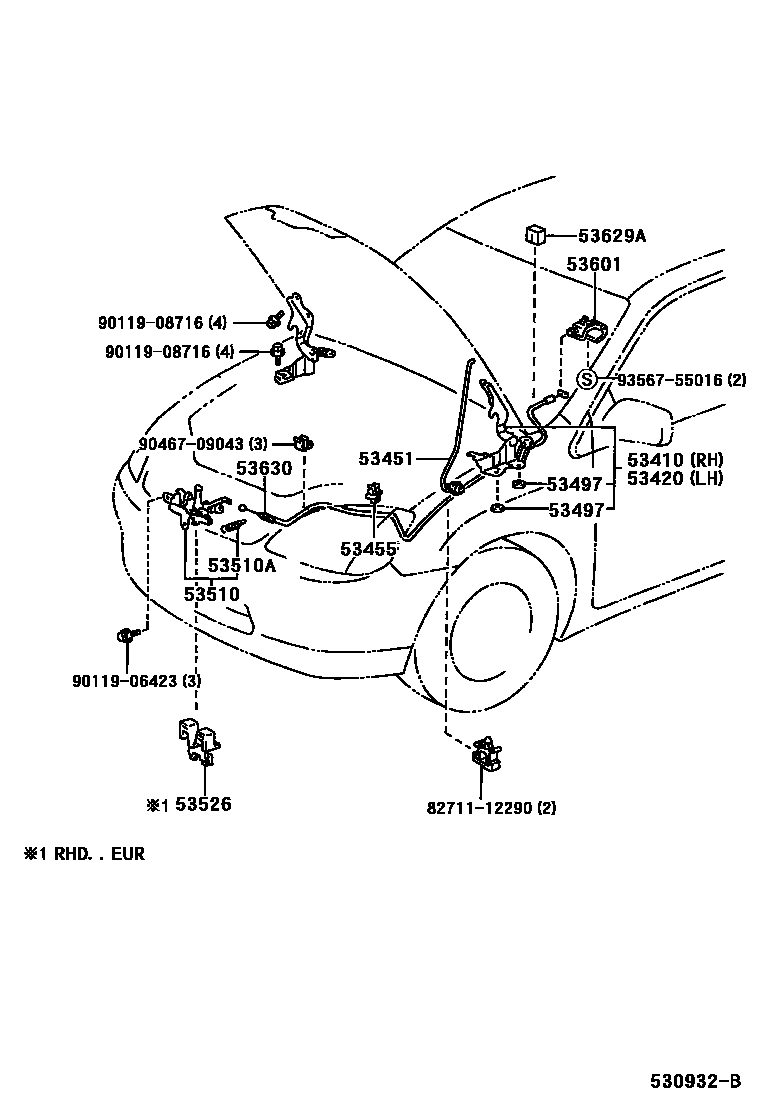

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-47010iNHW11200005

53420HINGE ASSY, HOOD, LH

main53420-47010iNHW11200005

53451ROD, HOOD SUPPORT

main53440-47010iNHW11200005

53455CLAMP, HOOD SUPPORT ROD

main53455-12100iNHW11200005

53497PAD, HOOD HINGE, NO.1

main53497-12050iNHW11200005

T=1.0

sub53497-42010

main53497-20070iNHW11200005

T=2.0

53510LOCK ASSY, HOOD

main53510-47010iNHW11..ARL200108

SINGAPORE SPEC

main53510-47030iNHW11..RHD..EUR200005

main53510-47040iNHW11..LHD200005

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNHW11..LHD200005

WD=0.9,CW=21

main90506-09057iNHW11..RHD200005

WD=0.9,CW=23

main90506-12067iNHW11..LHD200005

WD=1.4,CW=7.25

main90506-14064iNHW11..RHD200005

WD=1.4,CW=7.25

main90506-20071iNHW11200005

WD=2.0,CW=17.0

53526PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2

main53526-12040iNHW11..RHD..EUR200005

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-B5iNHW11200005

LT. AMETHYST,TRIM9#

sub53601-16020

sub53601-24030

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-47010iNHW11200005

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47020iNHW11200005

8271112290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12290

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
