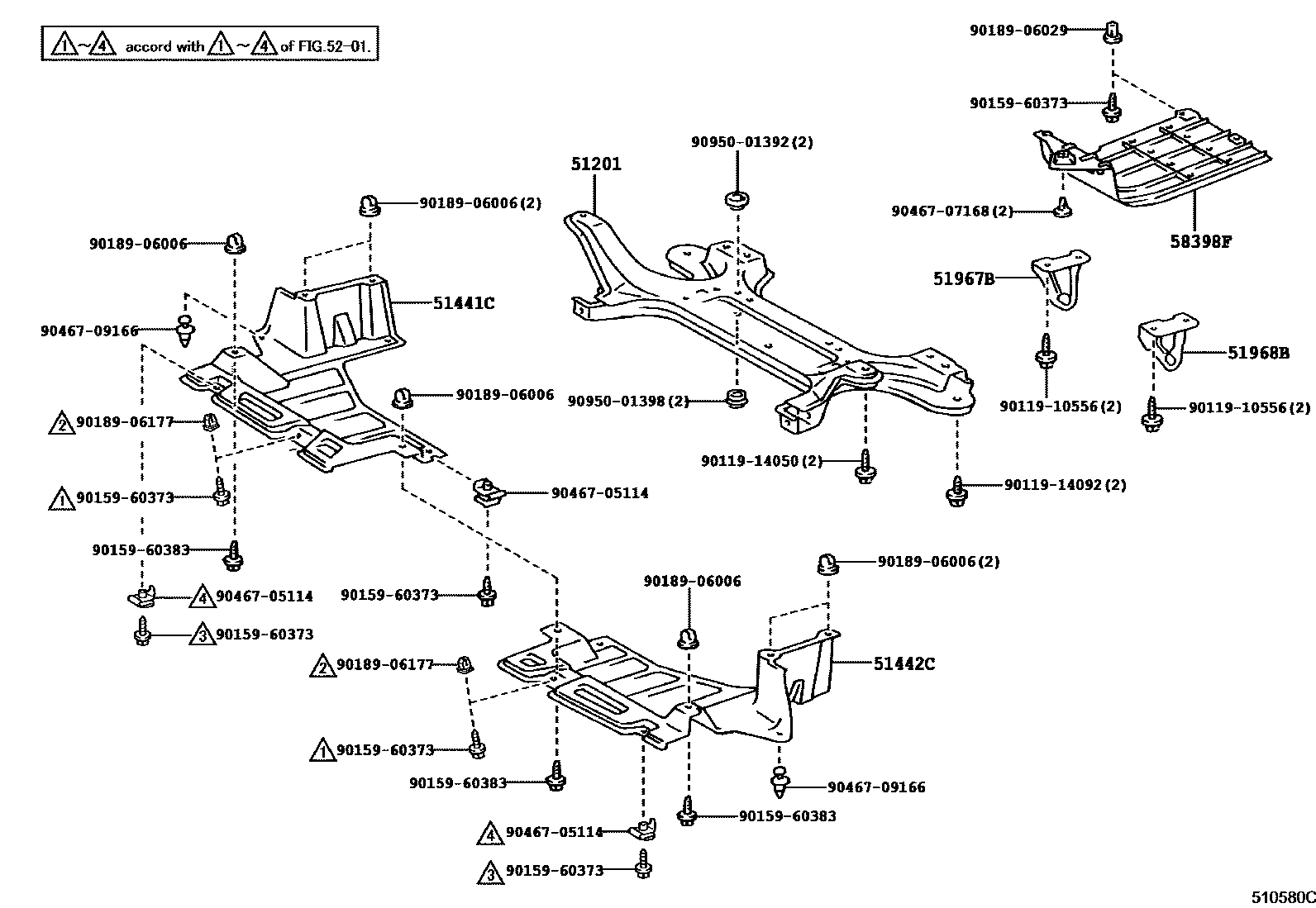

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47010iNHW11..RHD200005-200301

sub51201-47011

main51201-47011iNHW11..RHD200301

main51201-47020iNHW11..LHD200005-200301

sub51201-47021

main51201-47021iNHW11..LHD200301

51441CCOVER, ENGINE UNDER, RH

main51441-47010iNHW11200005

51442CCOVER, ENGINE UNDER, LH

main51442-47010iNHW11200005

51967BHOOK, TRANSPORT, REAR RH

main51967-10090iNHW11200005

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iNHW11200005

58398FCOVER, FLOOR UNDER, NO.1

main58398-47010iNHW11200005

9011910556

main90119-10556

9011914050

main90119-14050

9011914092

main90119-14092

9015960373

main90159-60373

9015960383

main90159-60383

9018906006

main90189-06006

9018906029

main90189-06029

9018906177

main90189-06177

9046705114

main90467-05114

9046707168

main90467-07168

9046709166

main90467-09166

9095001392

main90950-01392

9095001398

main90950-01398

19 parts on this diagram · 1 diagram in section
