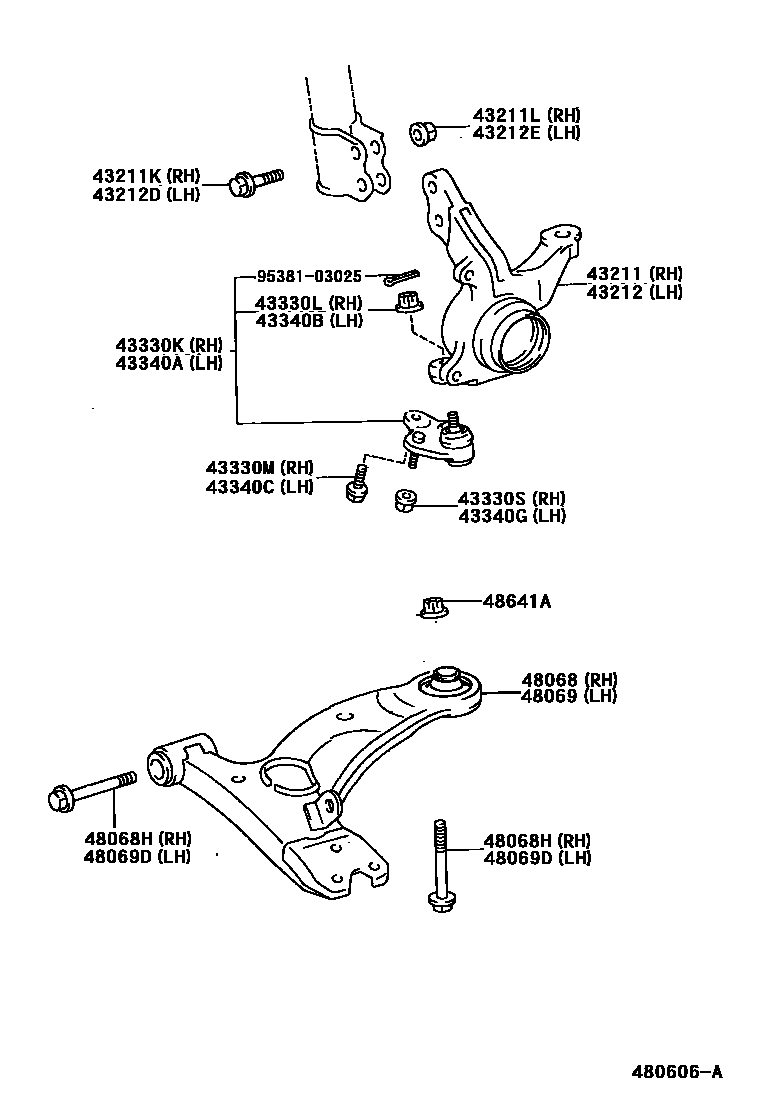

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-47010iNHW11200005-200104

sub43211-47011

main43211-47011iNHW11200104

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iNHW11200005

OD=15.0

main90105-15004iNHW11200005

OD=13.9

main90105-15005iNHW11200005

OD=13.3

main90105-15006iNHW11200005

OD=12.4

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iNHW11200005

43212KNUCKLE, STEERING, LH

main43212-47010iNHW11200005-200104

sub43212-47011

main43212-47011iNHW11200104

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iNHW11200005

OD=15.0

main90105-15004iNHW11200005

OD=13.9

main90105-15005iNHW11200005

OD=13.3

main90105-15006iNHW11200005

OD=12.4

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iNHW11200005

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iNHW11200005

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iNHW11200005

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iNHW11200005

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iNHW11200005

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iNHW11200005

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iNHW11200005

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iNHW11200005

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iNHW11200005

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-32080iNHW11200005-200205

sub48068-32081

main48068-32081iNHW11200205

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNHW11200005

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-32080iNHW11200005-200205

sub48069-32081

main48069-32081iNHW11200205

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNHW11200005

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iNHW11200005

9538103025

main95381-03025

20 parts on this diagram · 1 diagram in section
