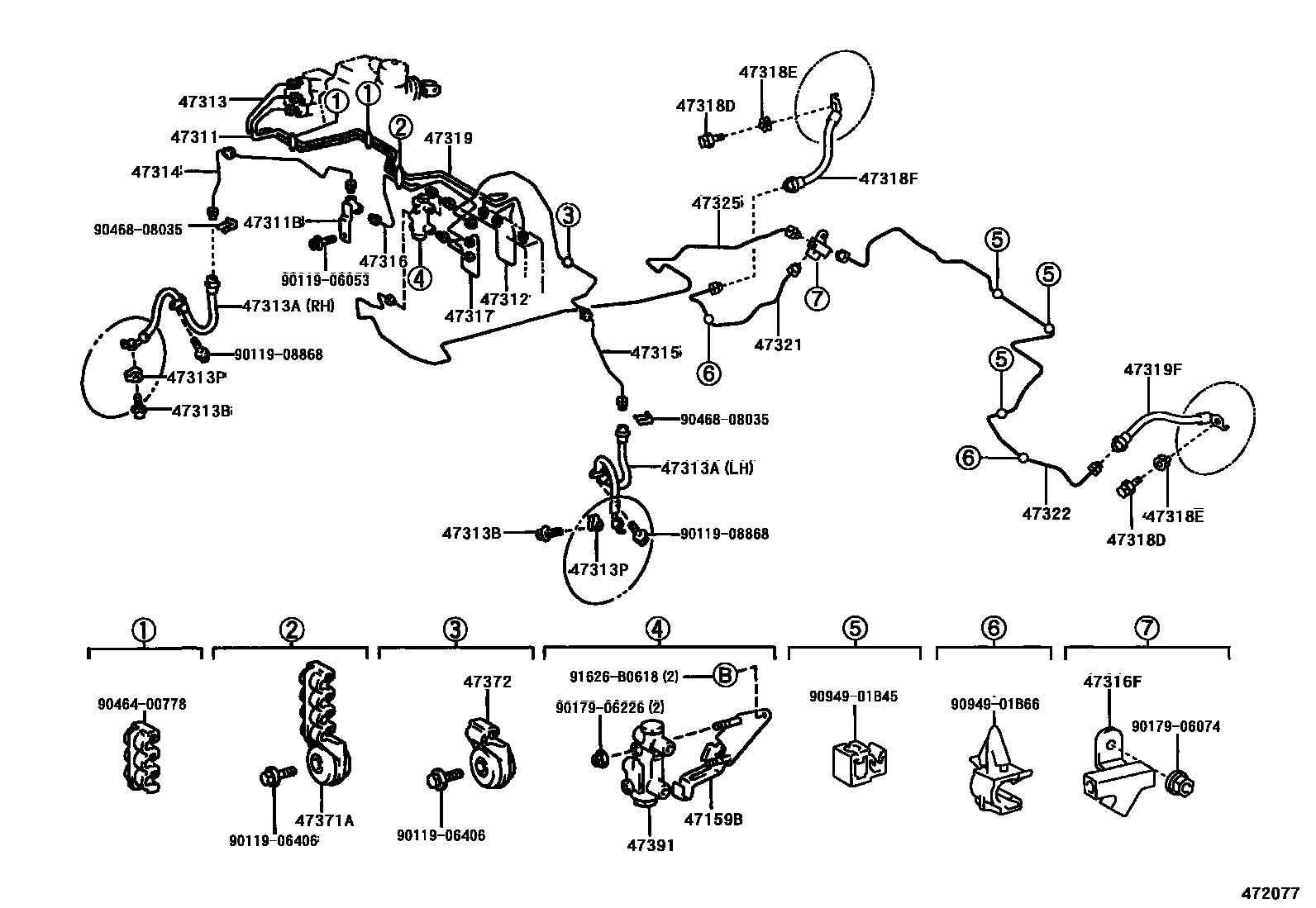

BRAKE TUBE & CLAMP
47159BBRACKET, PROPORTIONING & BY-PASS VALVE
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47316FWAY, 3(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319TUBE, FRONT BRAKE, NO.9
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47325TUBE, REAR BRAKE, NO.5
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47391WAY, BRAKE TUBE
9011906053
9011906406
9011908868
9017906074
9017906226
main90179-06226
9046400778
9046808035
9094901B45
9094901B66
91626B0618
35 parts on this diagram · 4 diagrams in section
