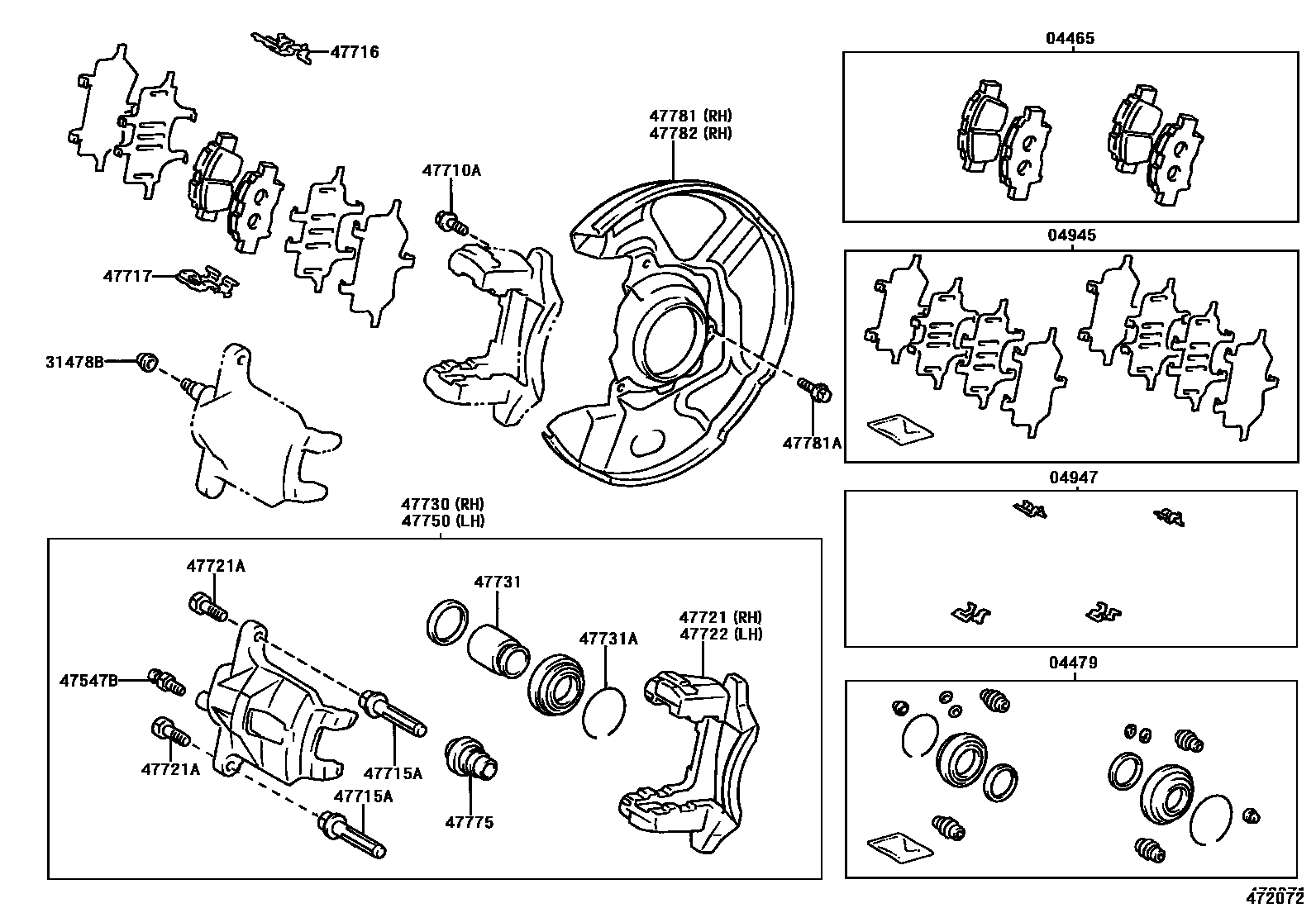

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52010iNHW11200005-200112

MARK NBK PN540H

sub04465-17140

sub04465-52120

main04465-52120iNHW11200112

MARK NBK PN540H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iNHW11200005

sub04478-47060

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNHW11200005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNHW11200005

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNHW11200005

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNHW11200005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNHW11200005

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010iNHW11200005

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200iNHW11200005

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100iNHW11200005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iNHW11200005

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNHW11200005

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iNHW11200005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20600iNHW11200005

47731PISTON, FRONT DISC BRAKE

main47731-20260iNHW11200005

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iNHW11200005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20510iNHW11200005

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010iNHW11200005

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47010iNHW11200005

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iNHW11200005-200012

main90119-06227iNHW11200012

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-47010iNHW11200005

21 parts on this diagram · 1 diagram in section
